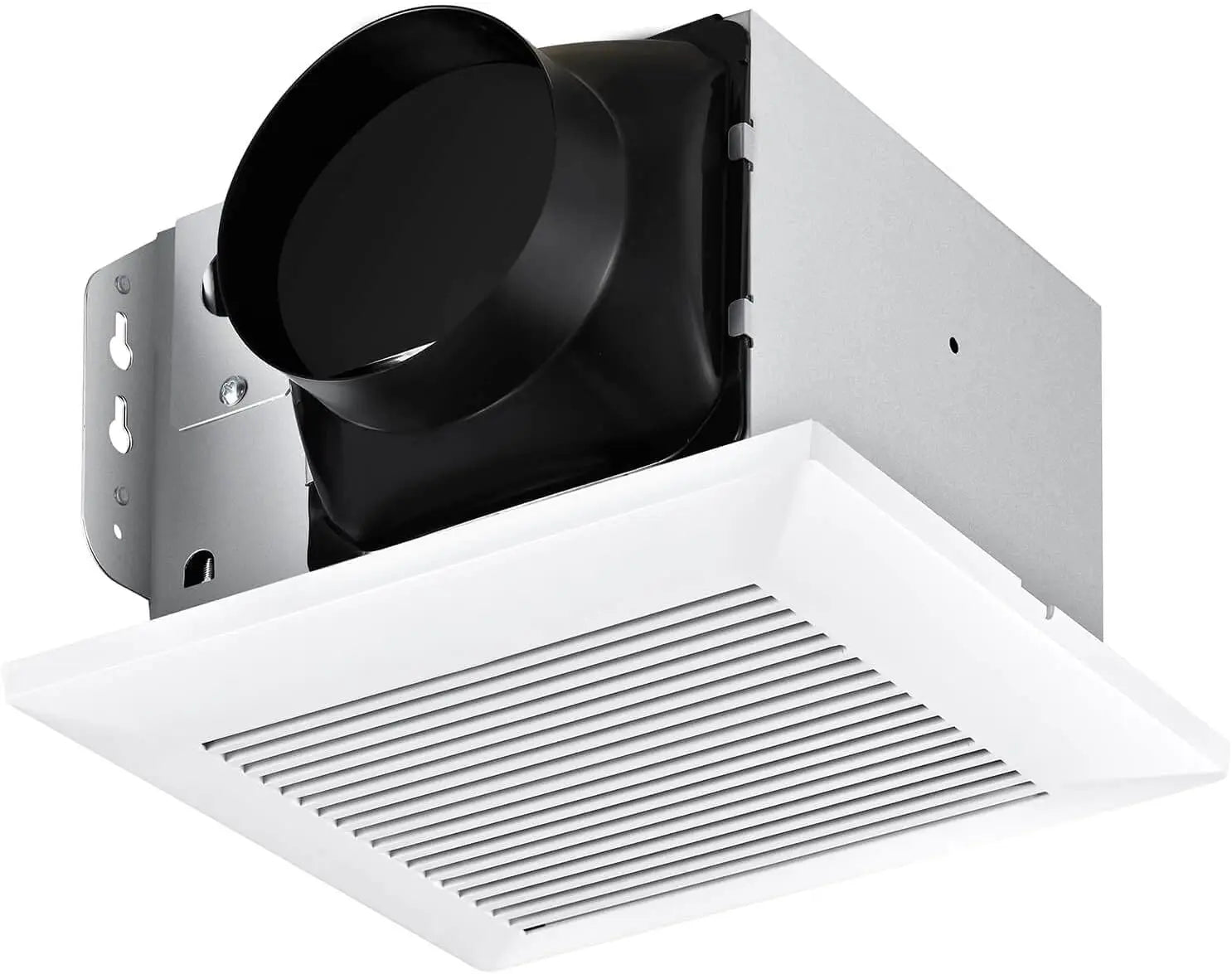

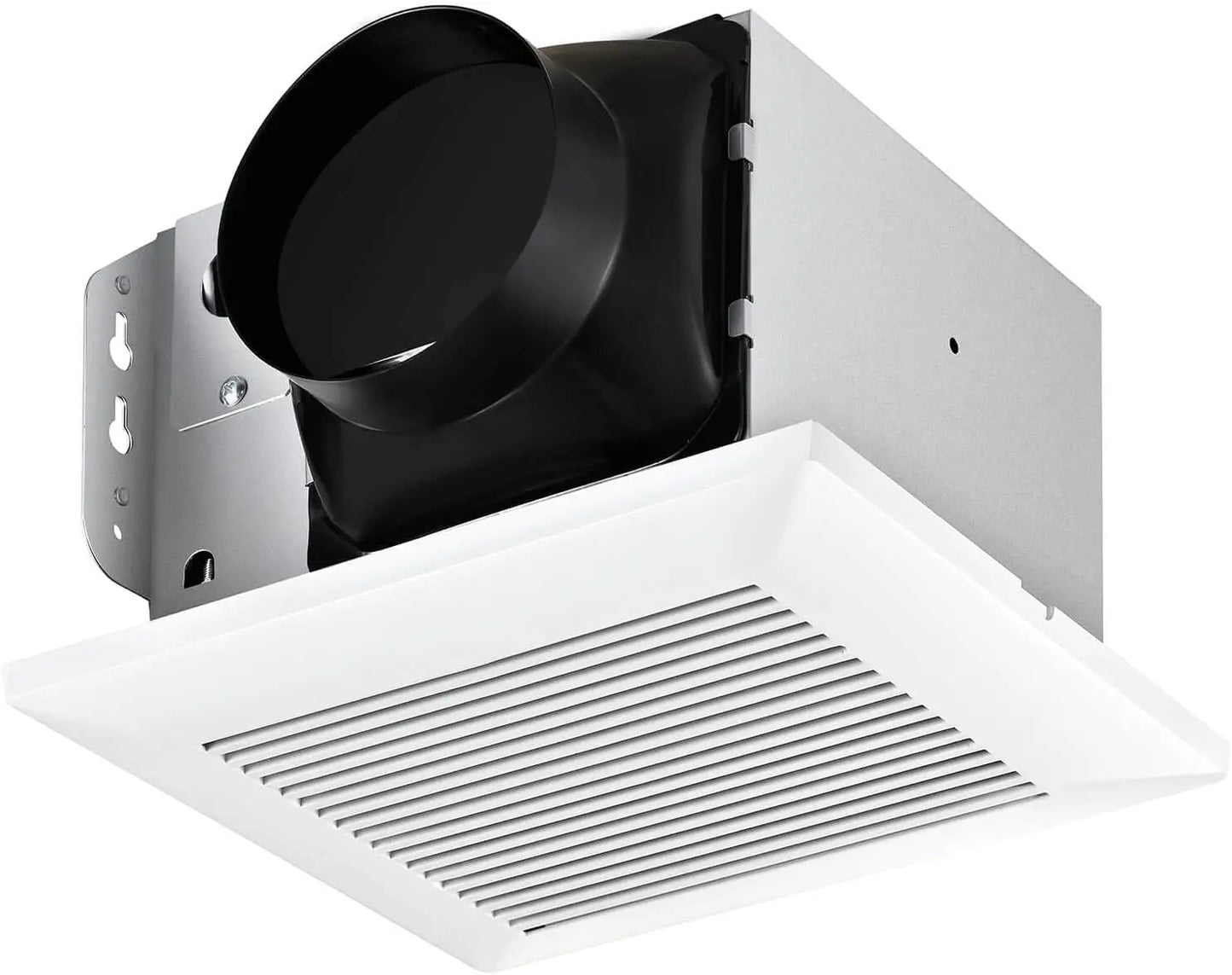

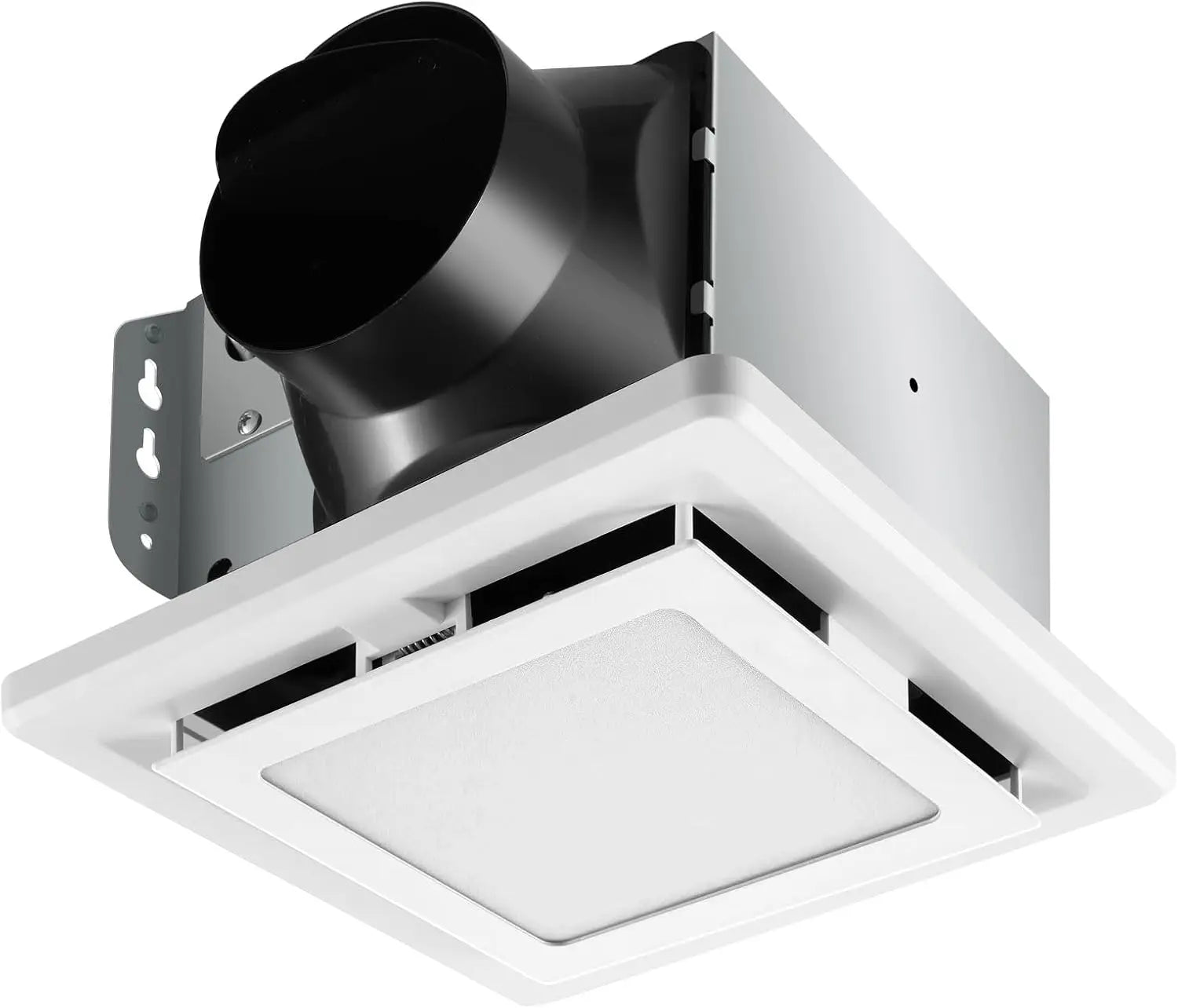

JOEAONZ 110 CFM Ultra Quiet Bathroom Exhaust Fan With Integrated LED Light
Engineered for enclosed spaces up to 107 square feet, this ceiling mount exhaust fan moves 110 cubic feet per minute while running at or below 2.0 sones, effectively clearing steam and odors without disrupting daily routines.
At its core sits a durable 120V AC brushless motor paired with a galvanized steel and anti-oxidation plastic housing. The 4-inch duct connector links directly to standard residential ventilation piping, ensuring reliable airflow extraction. Measuring 10.24 inches by 10.24 inches on the surface, the unit requires a cutout of approximately 7.75 inches wide by 7.5 inches long, making it a straightforward drop-in replacement for outdated fans.
The built-in lighting features a large 10.24-inch white diffuser that delivers 800 lumens of illumination. Adjust the color temperature across 3000K, 4000K, 5500K, and 6500K settings by rapidly cycling the main power button within two seconds. Separate internal wiring routes allow independent control of the fan and the LED panel, letting you ventilate during showers or illuminate the room afterward using identical wall switch configurations.
Constructed with moisture-resistant materials and pre-connected wiring terminals, the JOEAONZ VT13B-110 model reduces installation time and supports long-term use in bathrooms, bedrooms, cloakrooms, and utility areas.
SPECIFICATIONS
Brand Name: JOEAONZ
Certification: CE
High-concerned chemical: None
Origin: Mainland China
Power Source: AC
Wattage: 37W
110 CFM Bathroom Exhaust Fan with LED Light,
Feature

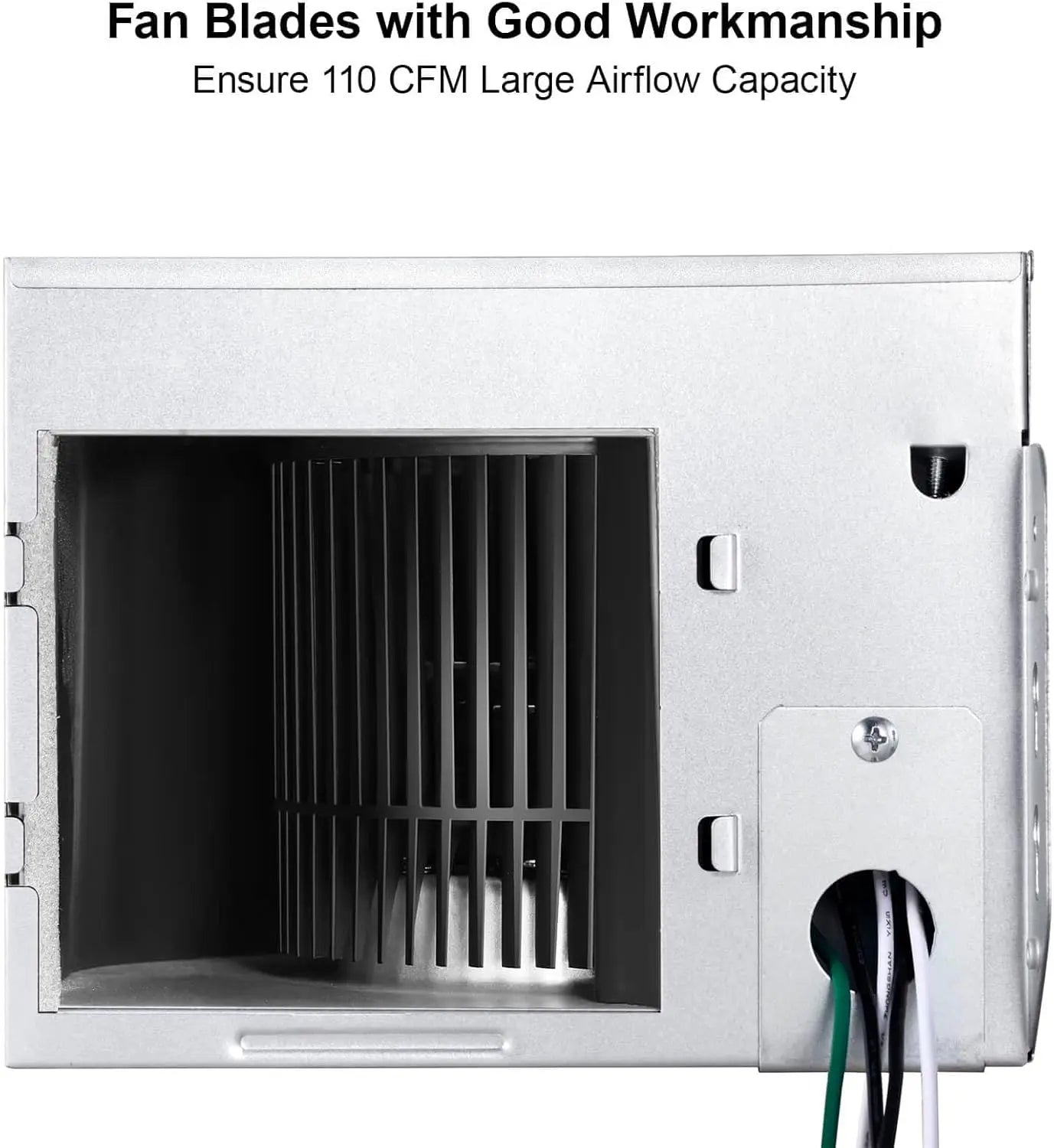

Powerful 110 CFM Airflow
Ultra-Quiet Operation (≤2.0 Sones)
3-Switchable LED Color Temperatures
Large 10.24" LED Panel
Durable Galvanized Steel Housing
Energy-Efficient Design
Easy Installation
Independent Fan/Light Control
Specification
Brand: JOEAONZ
Model: L14-110 / VT13B-110
Type: Bathroom Exhaust Fan with LED Light Combo
Mounting: Ceiling
Color: White
Material: Galvanized Steel & Anti-Oxidation Plastic
Performance & Functionality
Airflow Capacity: 110 CFM (covers 10m²/107ft²)
Noise Level: ≤2.0 Sones (ultra-quiet)

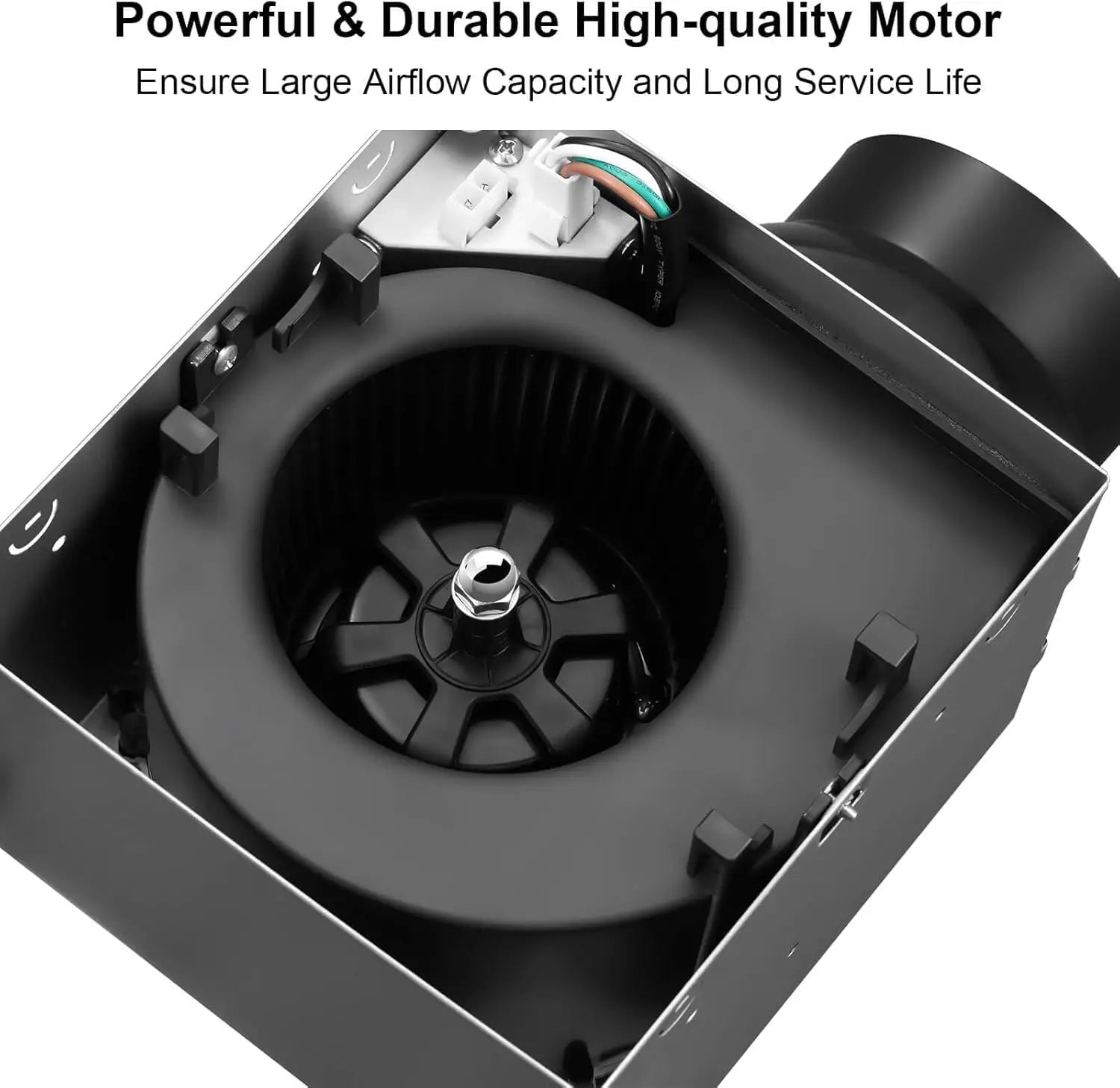

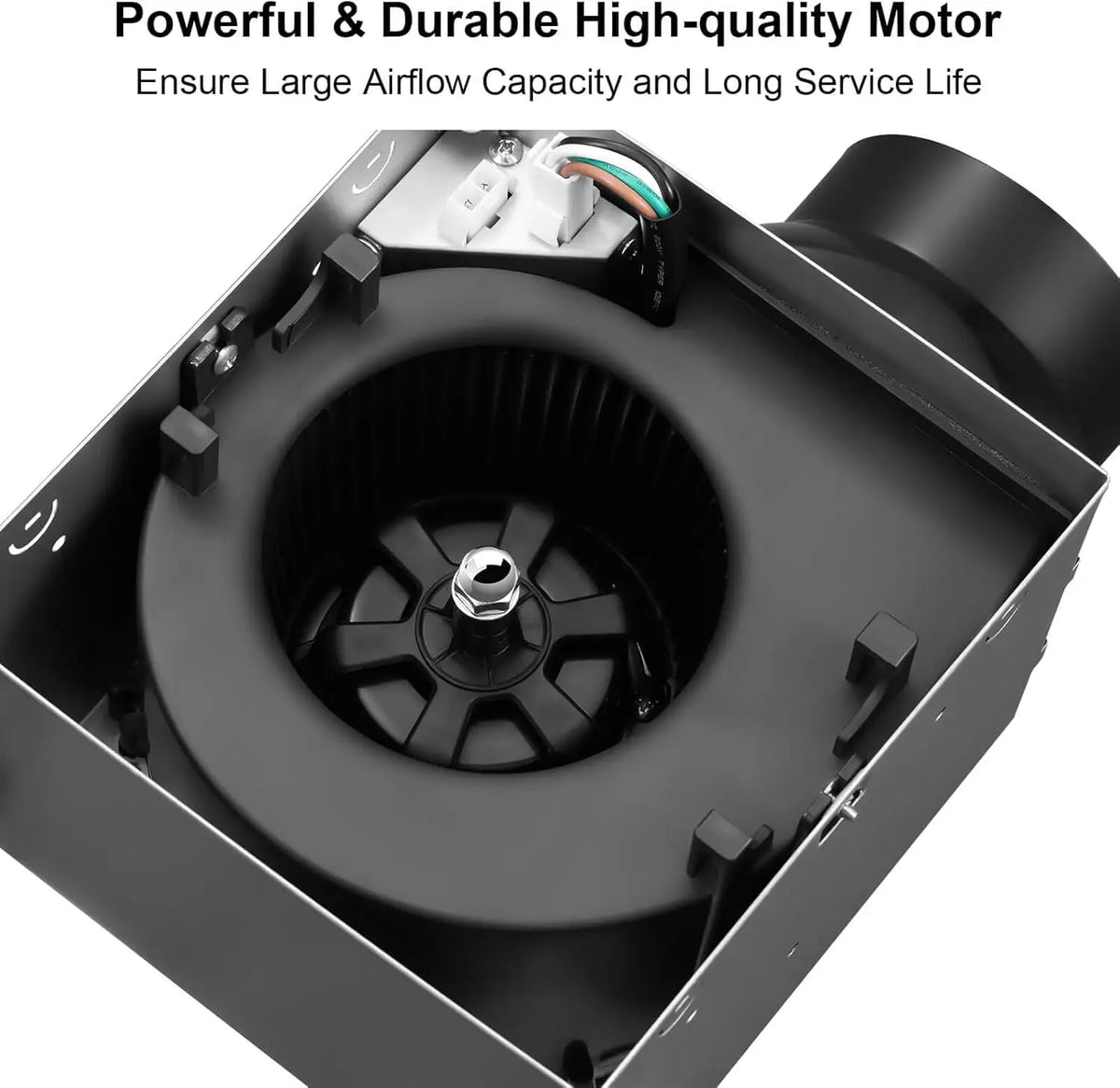

Motor: High-quality, durable 120V/60Hz
Speed Settings: 3-speed adjustable
LED Light: 800LM brightness, 6500K (switchable to 3000K/4000K/5500K)

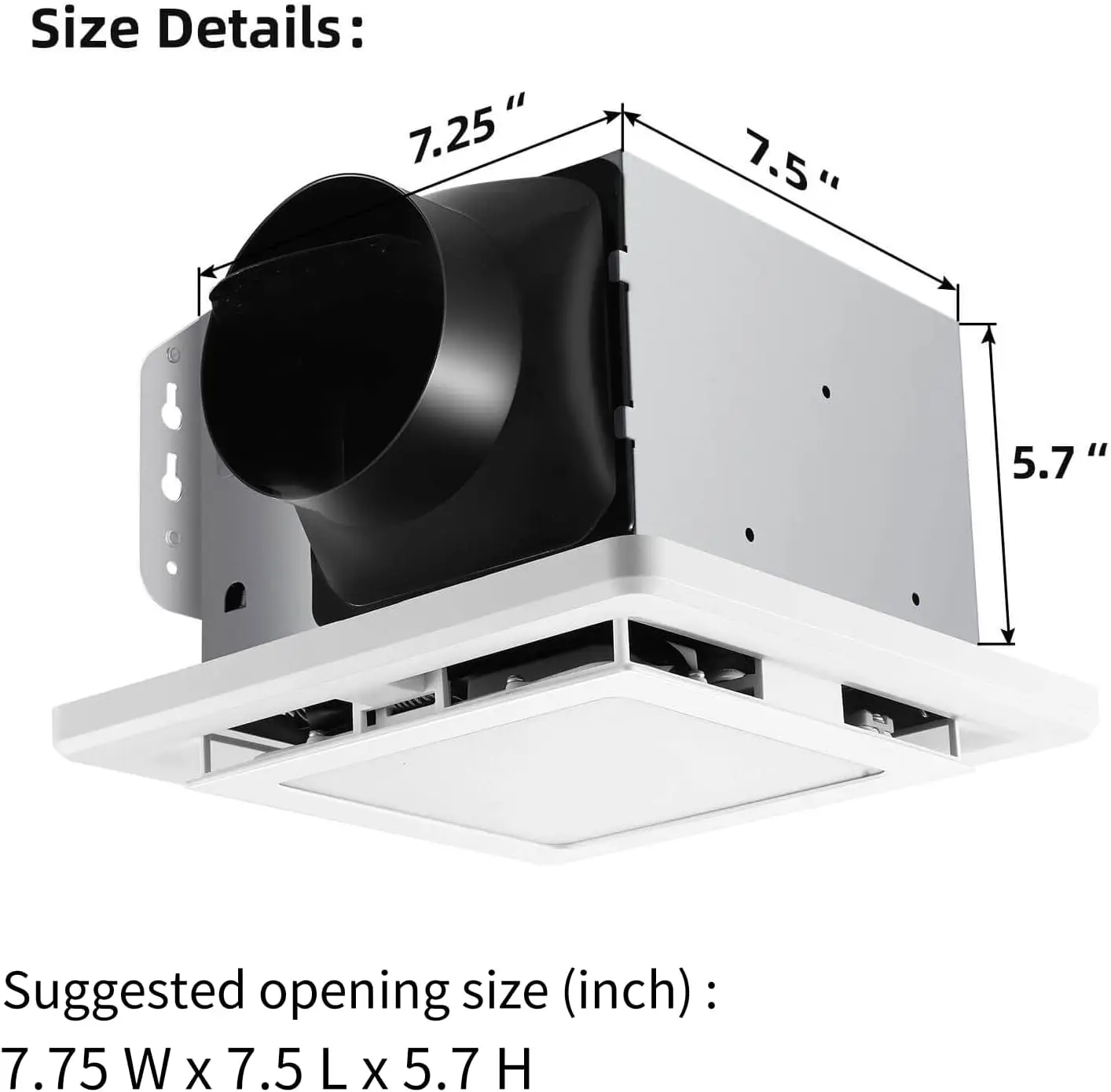

Dimensions & Installation
Product Size: 10.24" W × 10.24" L × 6.7" H
Housing Size: 7.75" W × 7.25" L × 5.7" H
Duct Diameter: 4" (100mm)
Weight: 2.74 kg
Key Features
Moisture & Rust Proof: Stainless steel insert housing
Independent Control: Separate switches for fan and light
Energy Saving: 120V AC power, ≤2.0 Sones noise
Quick Installation: Pre-set wire connectors
Applicable Scenarios
Bathroom, bedroom, cloakroom, and other enclosed spaces

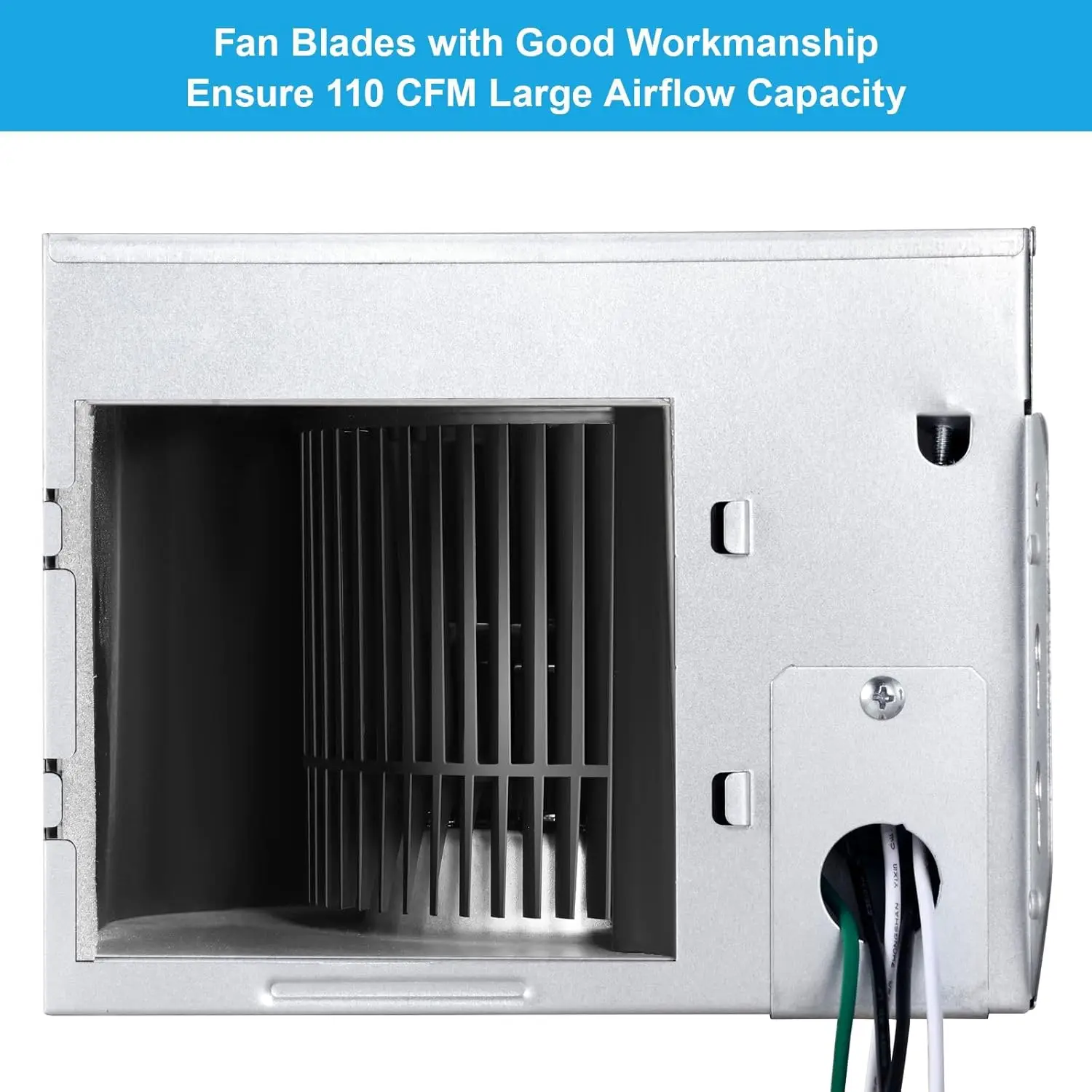

Powerful 110 CFM Airflow
Quickly removes moisture from bathrooms up to 10m²/107ft² with high-efficiency ventilation
Ultra-Quiet Operation (≤2.0 Sones)
Brushless motor ensures silent performance (<48dB), ideal for overnight use37

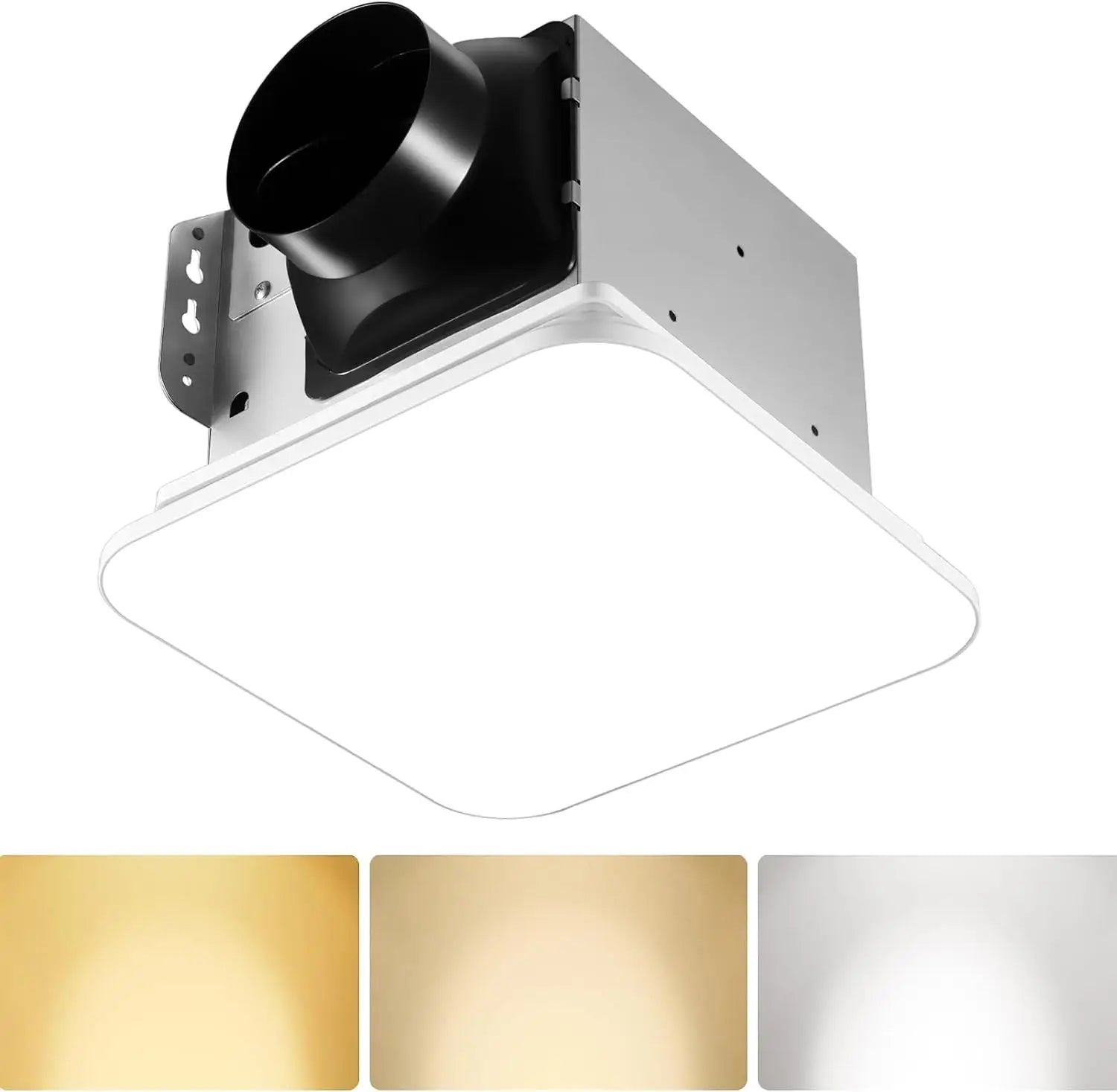

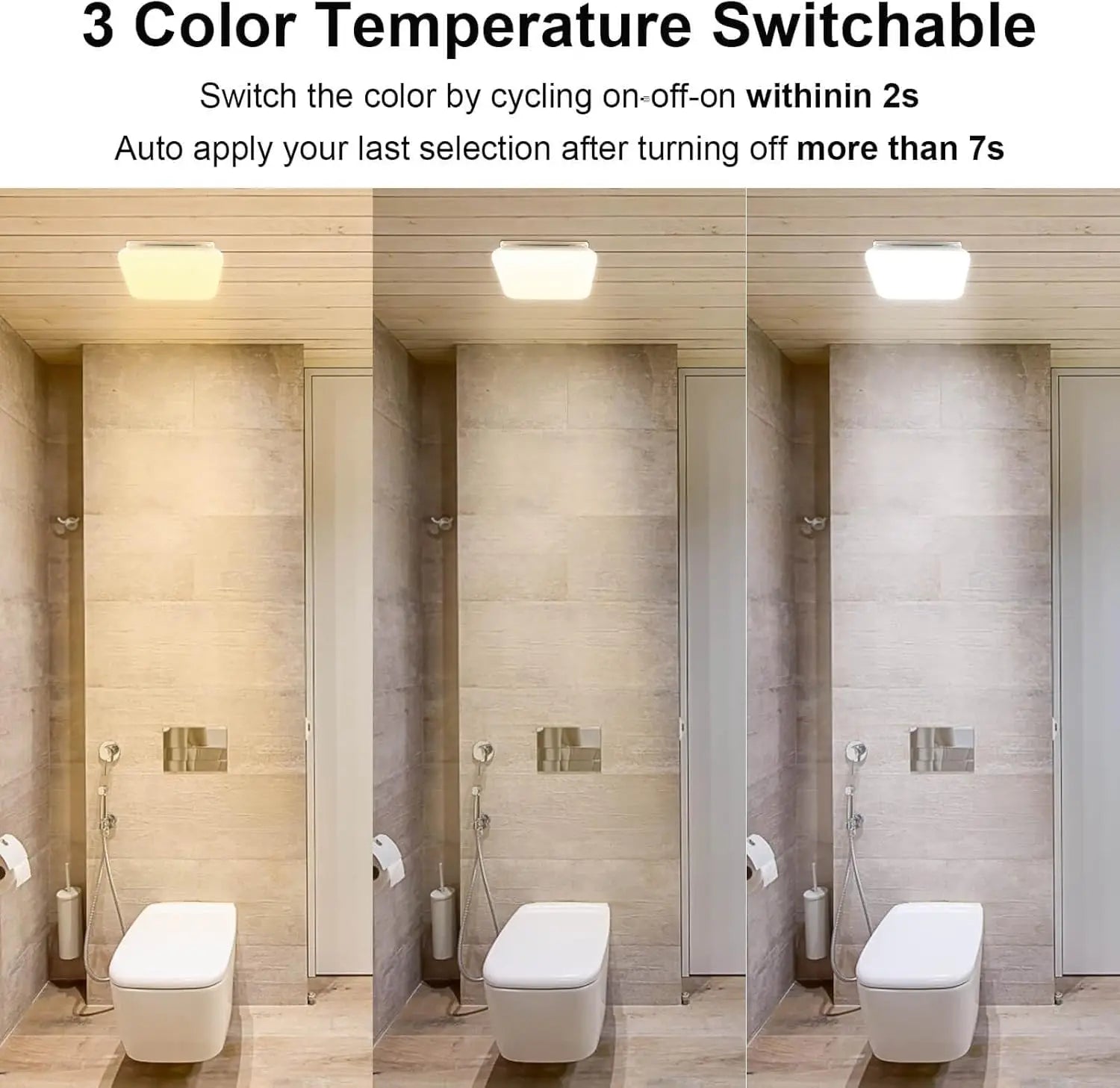

3-Switchable LED Color Temperatures
Adjust lighting (3000K/4000K/6500K) by cycling the power button within 2 seconds

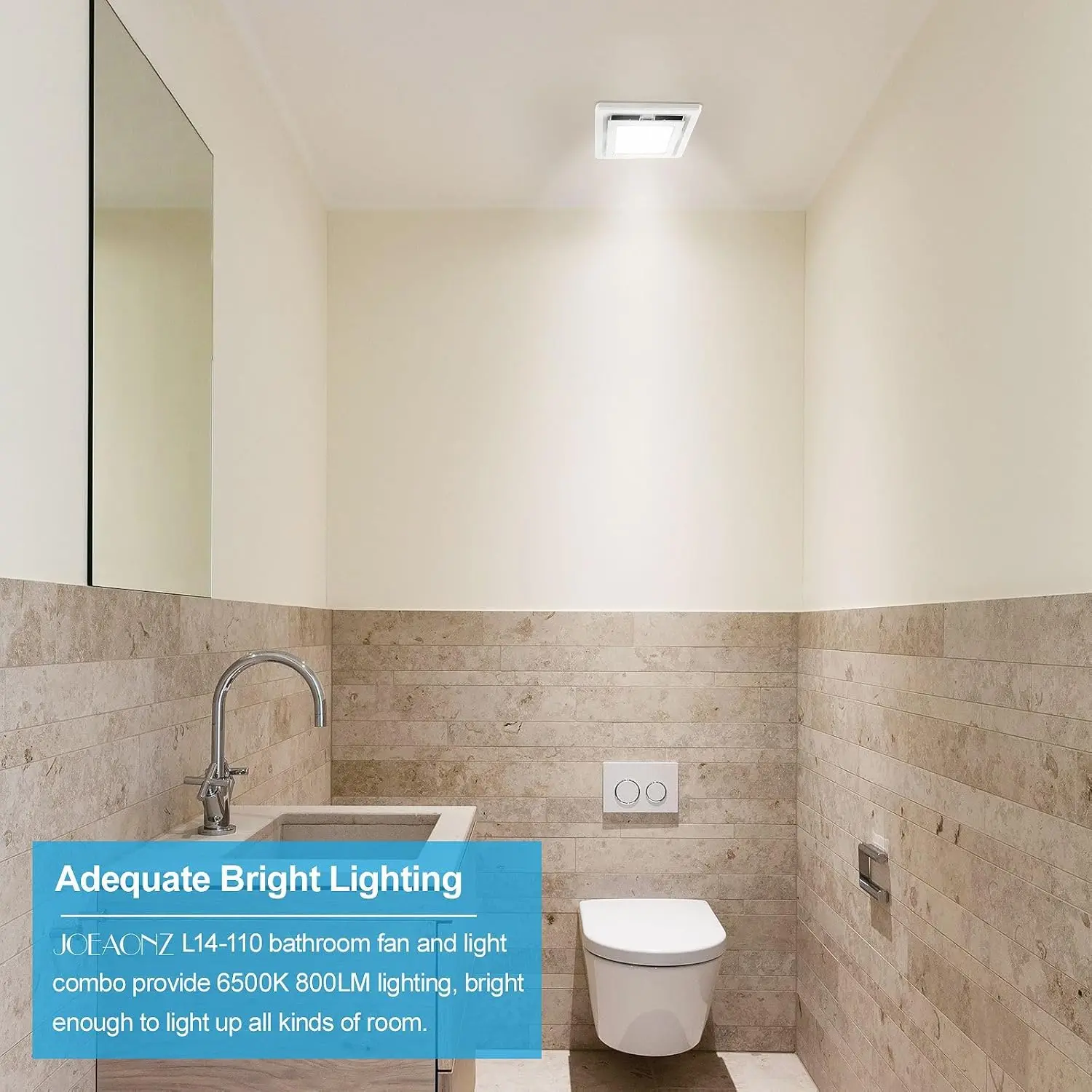

Large 10.24" LED Panel
800LM brightness provides ample illumination for bathrooms and bedrooms
Excellent Workmanship & Durable
JOEAONZ bathroom fan is made of matel and anti-oxidation plastic, which can withstand long-term use.
Simple Installation
JOEAONZ bathroom exhaust fan has preset wire connectors to simplify the installation process. Installation time will be greatly shortened.
Applicable Area of 10㎡/107ft²
The applicable bathroom area of JOEAONZ bathroom ventilation fan is 10m²/107ft² which is suitable for most family bathrooms.
110 CFM Bathroom Exhaust Fan with LED Light, 6500K 800LM, 2 Sones, Ceiling Mount Exhaust Fan
Feature
Powerful 110 CFM Ventilation
Ultra-Quiet 2 Sones Operation
Integrated 6500K LED Light (800LM)
Easy DIY Installation
Dual Independent Controls
Premium Galvanized Steel Construction
Energy-Efficient (37.8W)
Multi-Room Versatility
Sleek White Design
Lightweight (6.03 lbs)
Specification
Physical Dimensions & Weight
Product Dimensions: 10"D x 10"W x 7"H
Item Weight: 6.03 pounds
Suggested Opening Size: 7.75"W x 7.5"L x 5.7"H
Duct Diameter: 4 inches
Performance Specifications
Air Flow Capacity: 110 CFM (Cubic Feet Per Minute)
Noise Level: 2 Sones (Ultra Quiet Operation)
Wattage: 37.8 watts (Energy Efficient)
Voltage: 120 Volts (Standard Household)
Efficiency Rating: High Efficiency
Technical Features
Mounting Type: Ceiling Mount
Power Source: AC
Control Method: Push Button
Switch Type: Separate Switches (Independent Control)
Design & Construction
Material: Galvanized Steel & Anti-oxidation Plastic
Finish Type: White
Number of Blades: 1
110 CFM Powerful Airflow
Quickly removes moisture and odors from enclosed rooms up to 107 sq. ft.
6500K 800LM Daylight LED Lighting
Provides clear, bright illumination for various indoor spaces
Ultra Quiet Operation
Only 2 Sones noise level for peaceful bathroom environments
Energy Efficient Design
37.8 watts power consumption with high efficiency performance
Separate Switch Control
Independent operation for exhaust fan and LED lighting functions
Easy Ceiling Mount Installation
Simple installation process with clear manual instructions
4-Inch Duct Diameter
Standard duct size for easy installation and replacement
Multi-Room Versatility
Suitable for bathrooms, bedrooms, home offices, kids rooms, and study rooms
Durable Construction
Made from galvanized steel and anti-oxidation plastic materials
Independent Wiring System
Allows separate control of ventilation and lighting features
Suitable for Various Ceiling Openings
Compatible with standard household opening sizes

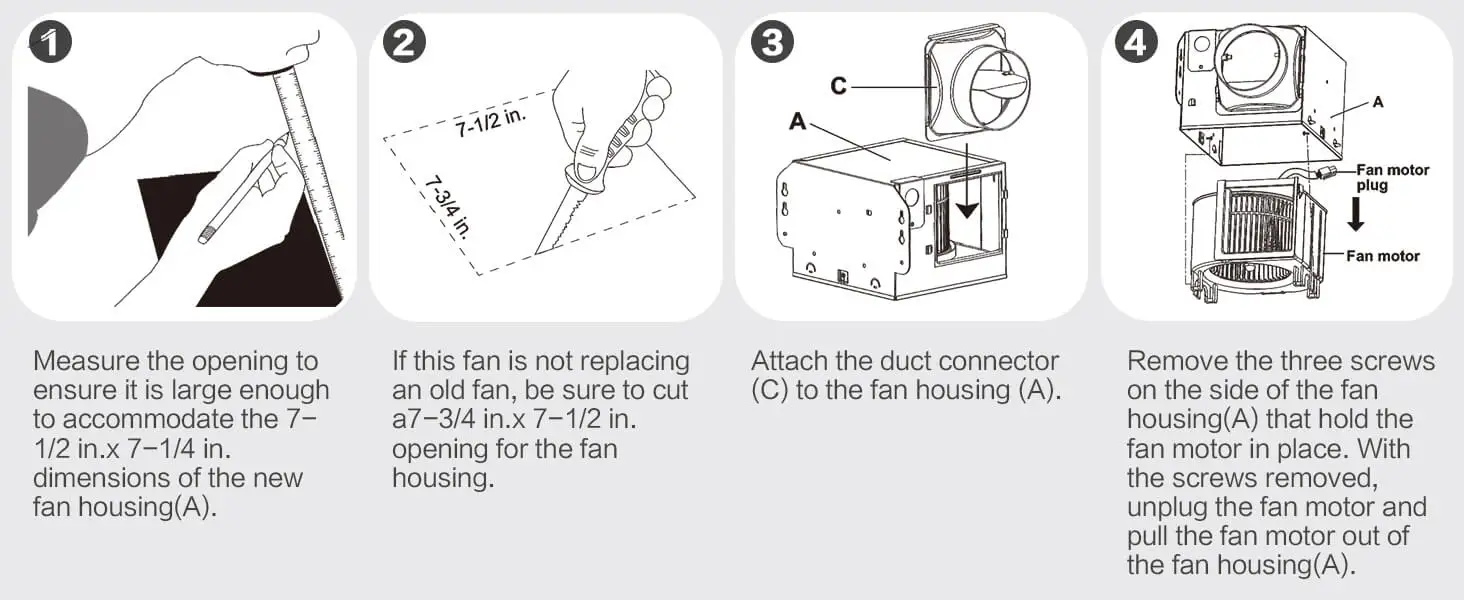

Simple Installation Guide
Step 1: Prepare the Opening
Ensure the ceiling opening measures 7.75" W x 7.5" L to properly fit the fan housing.

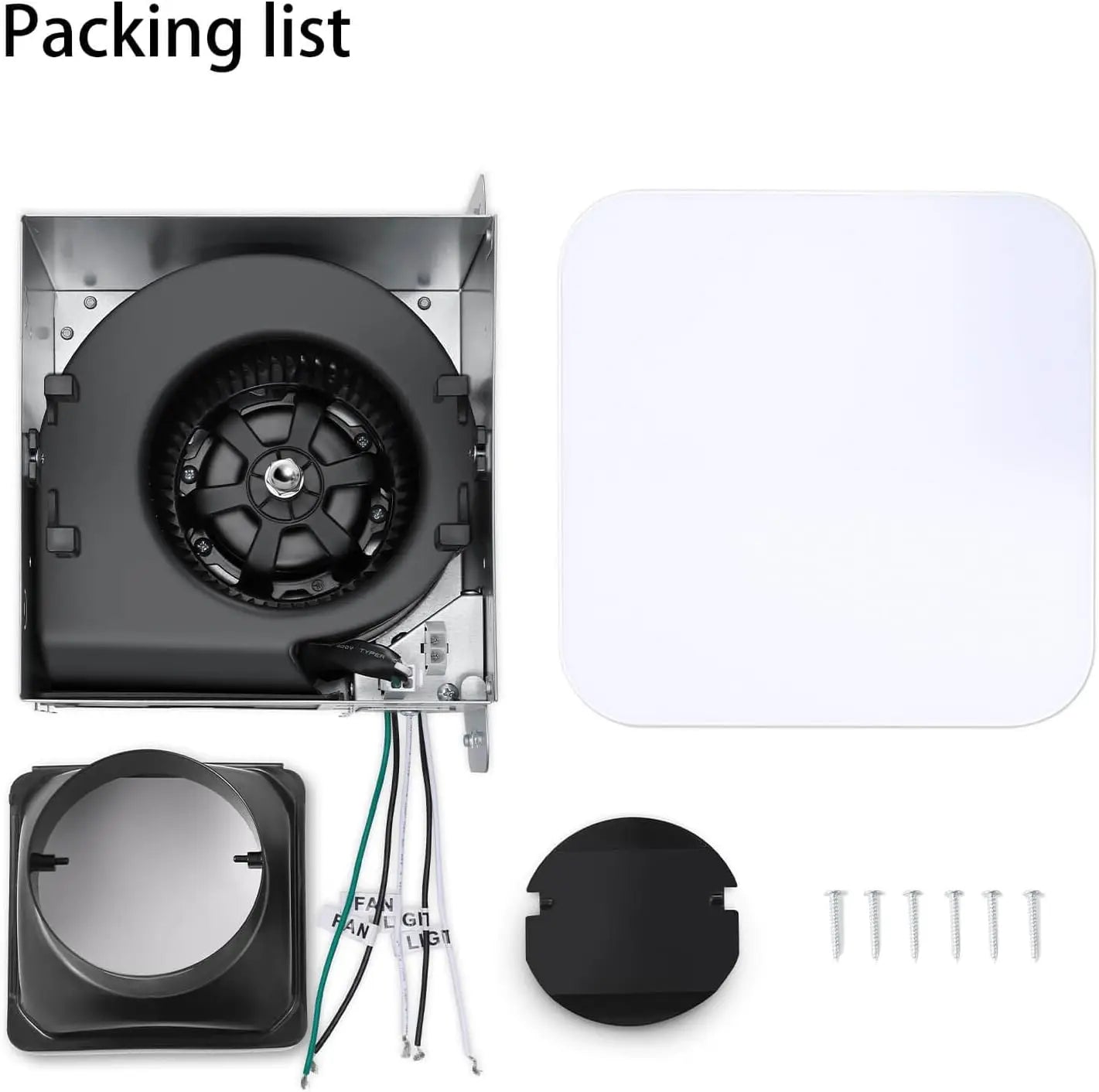

Step 2: Install the Fan Housing (A)
Secure the fan housing into the prepared opening.

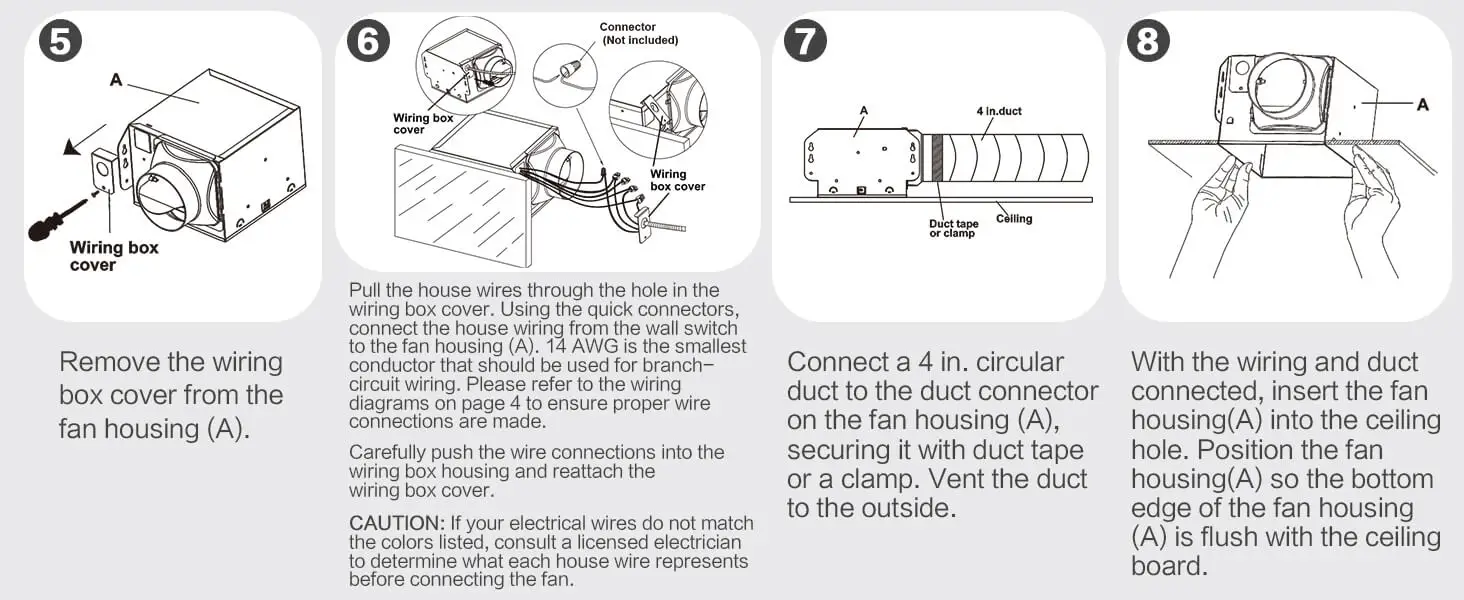

Step 3: Connect the Duct
Attach the included 4-inch duct connector (C) to the top of the housing for ventilation.
Step 4: Wire the Unit (Critical Safety Step)
The LED light and fan motor have independent wiring. Connect them according to the manual for separate switch control.
Step 5: Replacing an Old Unit?
If replacing an existing fan, the installation is even simpler. You can use the existing pipeline, and no additional materials are needed.
Installation Notes:
Refer to the detailed steps and pictures in the product manual.
Independent wiring allows you to control the light and fan independently for convenience
