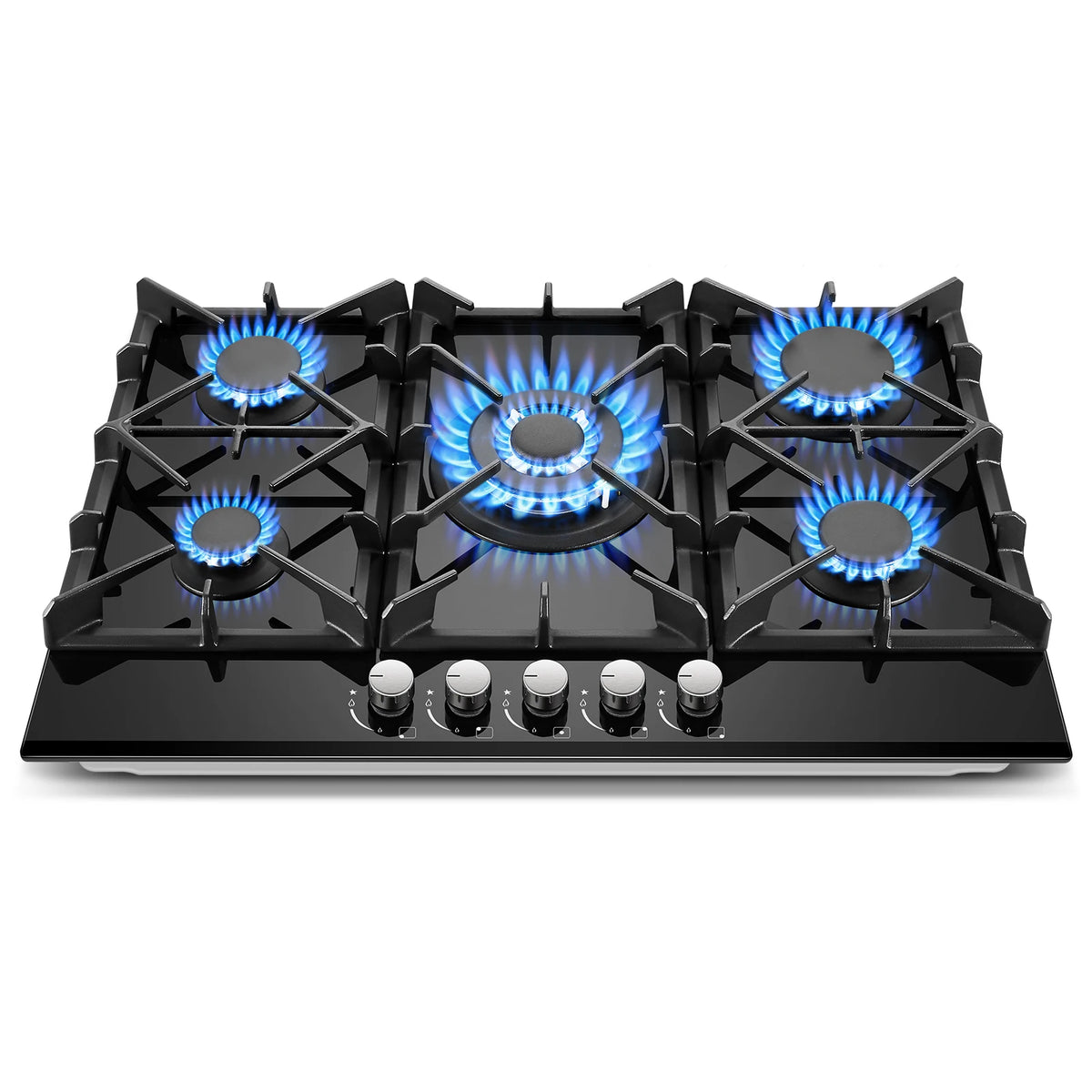

Tieasy Convertible Five-Burner Gas Cooktop

Cook several dishes at once on five burners, from a rapid boil on the 12,000 BTU center burner to a gentle simmer for sauces. This 30-inch built-in gas cooktop gives you a useful range of heat for everyday meals and larger cooking sessions.

Its black tempered-glass surface brings a sleek look to your kitchen, while sealed burners and heavy-duty cast-iron pan supports keep the cooking area ready for pots and pans. Use it for weeknight dinners, or keep multiple burners going when you’re preparing a meal for guests.

• Five burner outputs: Get 36,766 BTU/hr total, with one 12,000 BTU burner, one 8,530 BTU burner, two 6,142 BTU burners, and one 3,412 BTU simmer burner.
• Natural gas or LPG: The cooktop comes preset for natural gas and includes LPG conversion nozzles and a compatible pressure regulator.
• Flame-out protection: Each burner has a thermocouple safety device that shuts off the gas supply if its flame goes out.
• Electronic ignition: Press and turn a knob to light a burner, then adjust the flame to suit your cooking.
• Built-in dimensions: The cooktop measures 29.9"W × 20.1"D × 3.9"H; the recommended cutout is 27.95"W × 18.89"D.
• Included accessories: Mounting brackets, screws, sealing tape, a regulator, and LPG conversion nozzles are included.

Before use, install the nozzles that match your gas type and check that the burner caps and grates sit level. After lighting, keep the knob pressed for 2–3 seconds so the thermocouple can heat up. If you smell gas, shut off the supply, ventilate the room, and have a qualified technician check the cooktop before using it again.

SPECIFICATIONS

Brand Name: Tieasy

Design: European Style

Exhausting Method: Other

Feature: Smoothtop

High-concerned chemical: none

Ingition Mode: Piezoelectric Ceramic Ignition

Installation: Built-In

Material: Tempered glass

Model Number: PG001-305G

No. of Burner: 5

Origin: Mainland China

Power (W): 10.4Kw

Power Source: Other,Dual Fuel

Structure: Built-In

Type: Integrated Cooktop

Voltage: 120V

30 Inch Gas Cooktop 5 Burner Black Glass Built-in Stove Top NG/LPG Convertible

Feature

5 High-Efficiency Burners: 12,000 BTU + 2 × 6,142 BTU + 8,530 BTU + 3,412 BTU (Total 36,766 BTU/hr)

NG/LPG dual-fuel conversion (including nozzle and pressure regulator)

Thermocouple flame failure protection / Automatic gas shut-off

30-inch black tempered glass hob

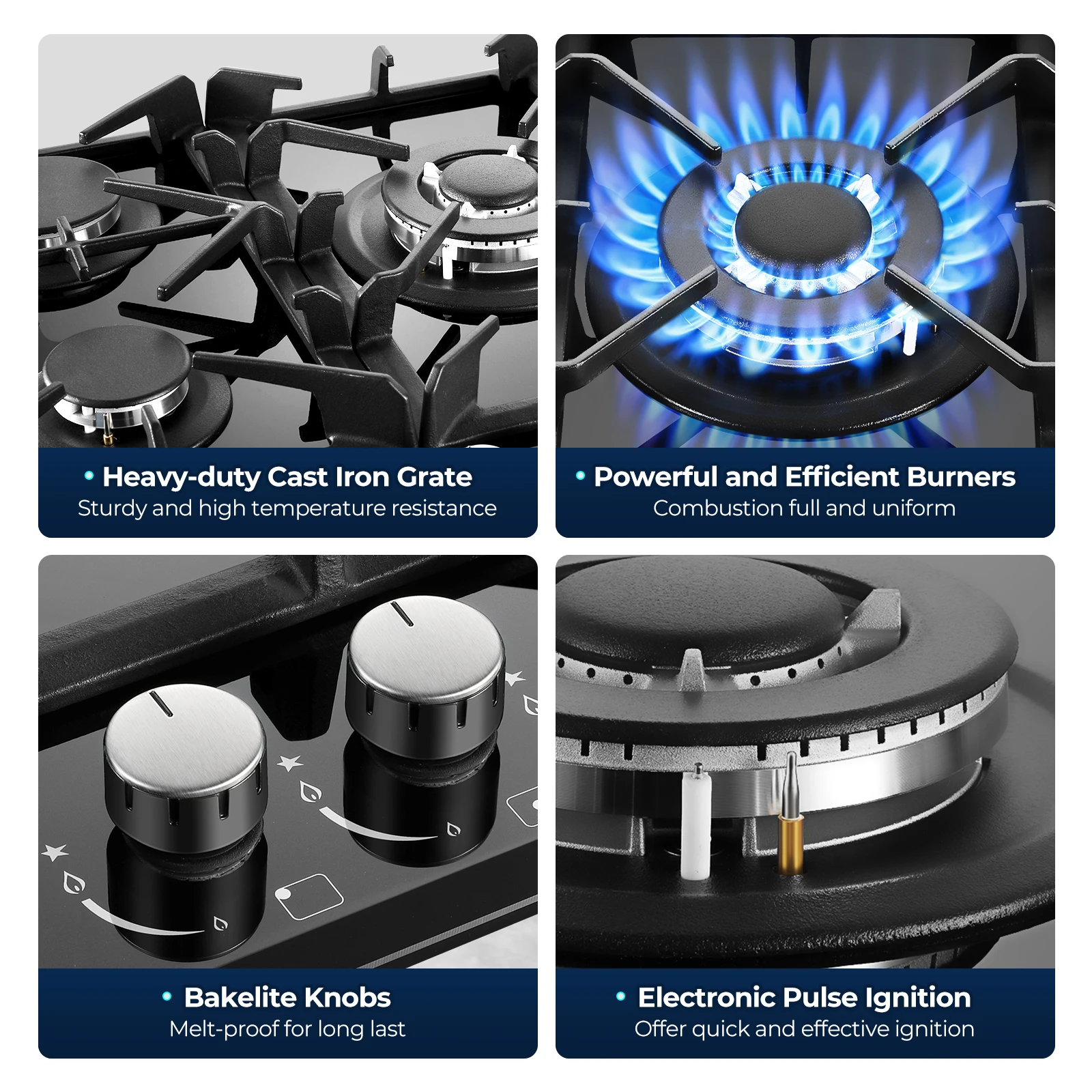

Heavy-duty cast iron pan supports + Sealed burners

Electronic pulse ignition, push-button control

Precise cut-out dimensions + Full range of accessories

After-sales advice on correct burner cap positioning and ignition techniques

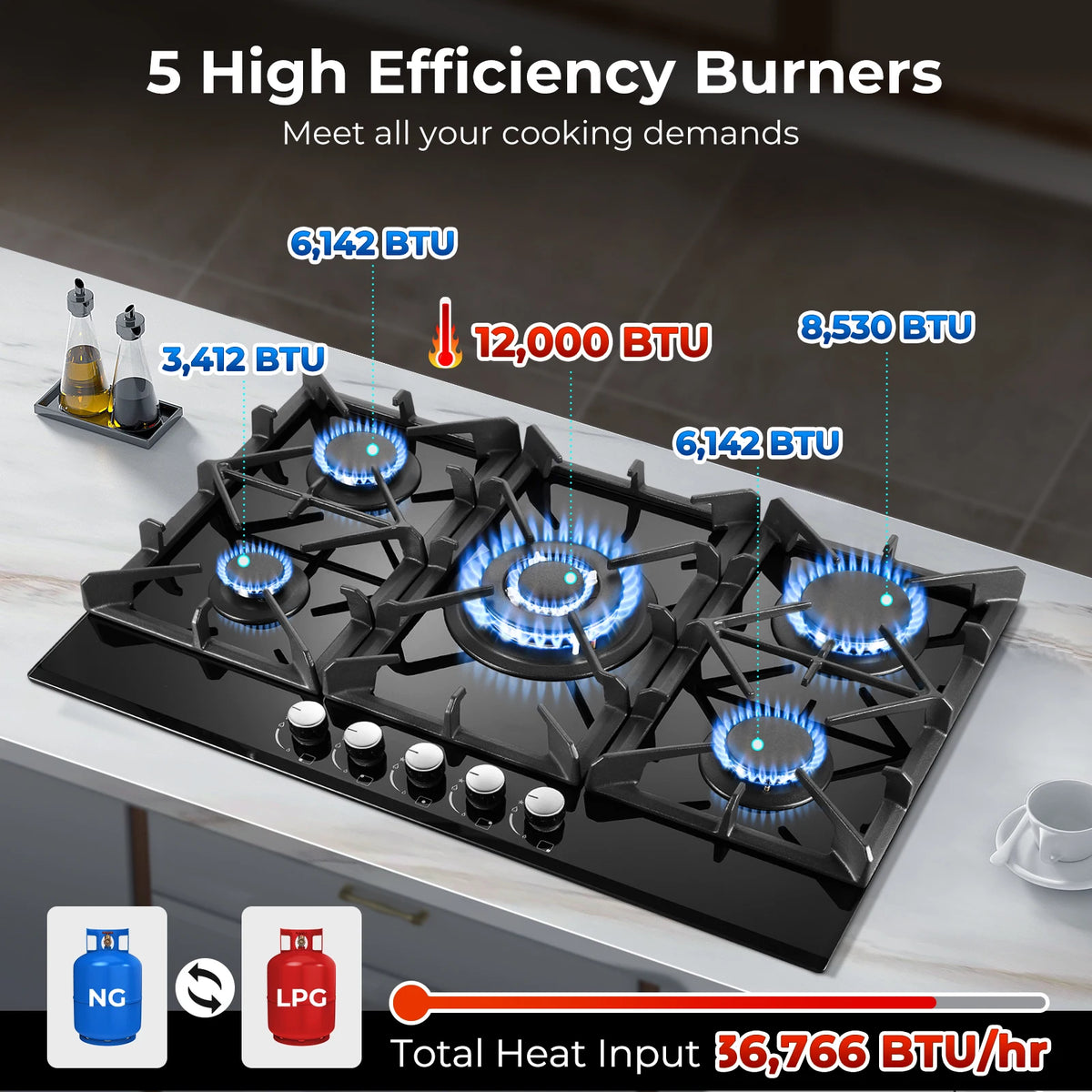

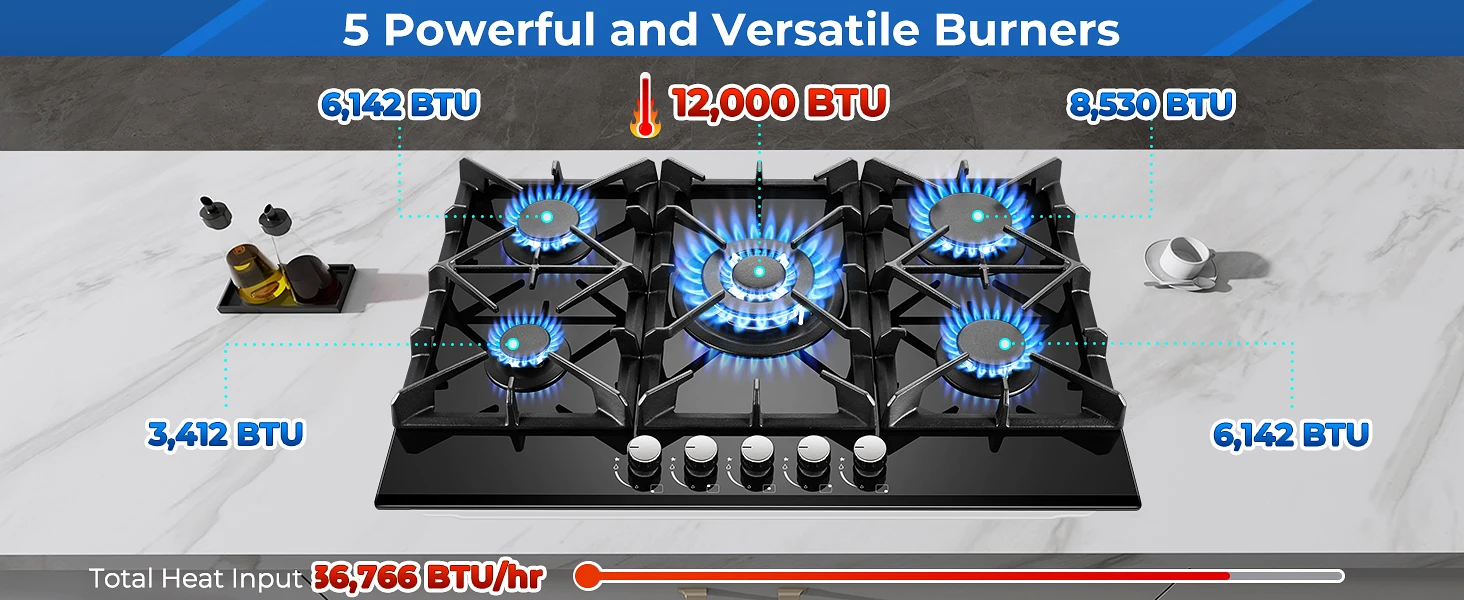

5 High-Efficiency Burners — 36,766 BTU Total

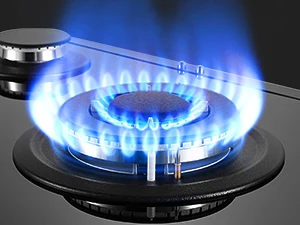

Five sealed burners deliver a combined 36,766 BTU/hr, including a powerful 12,000 BTU center burner for rapid boiling and searing, plus 8,530 BTU, dual 6,142 BTU, and a 3,412 BTU simmer burner for delicate sauces

NG/LPG Convertible with Conversion Kit

Comes preset for natural gas and includes LPG nozzles and a compatible pressure regulator. Switching fuel types is straightforward, making it ideal for homes, apartments, RVs, and outdoor kitchens

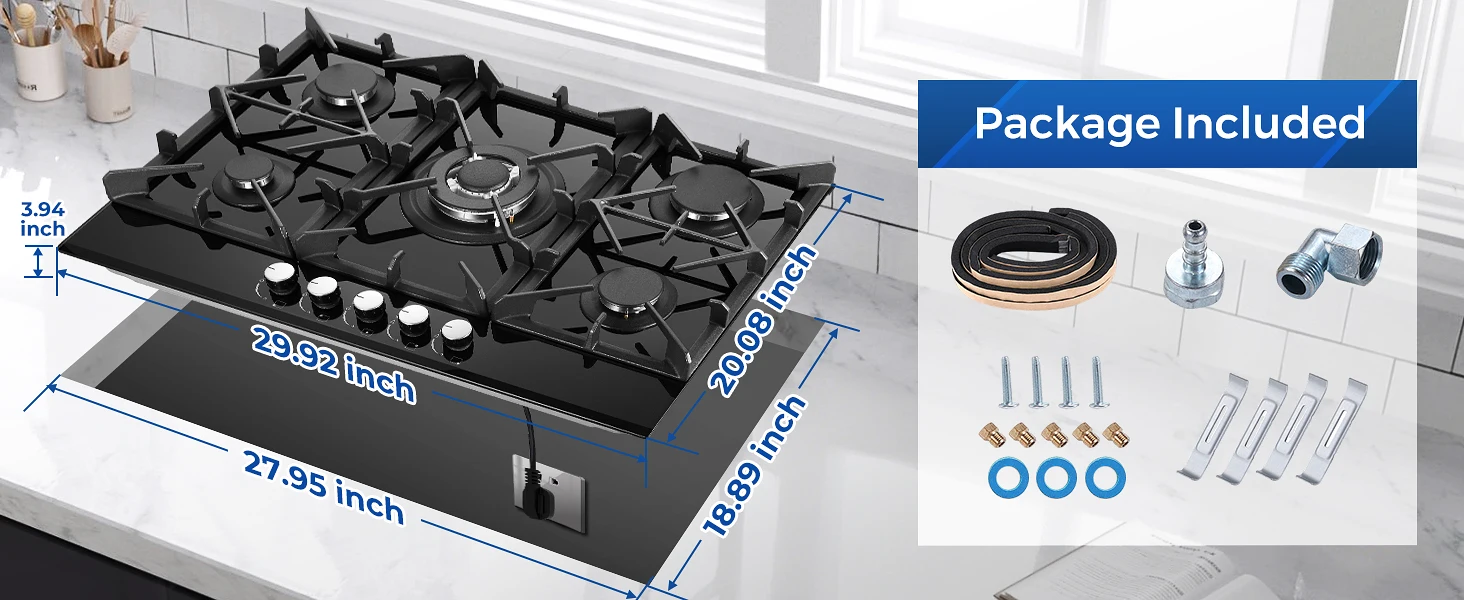

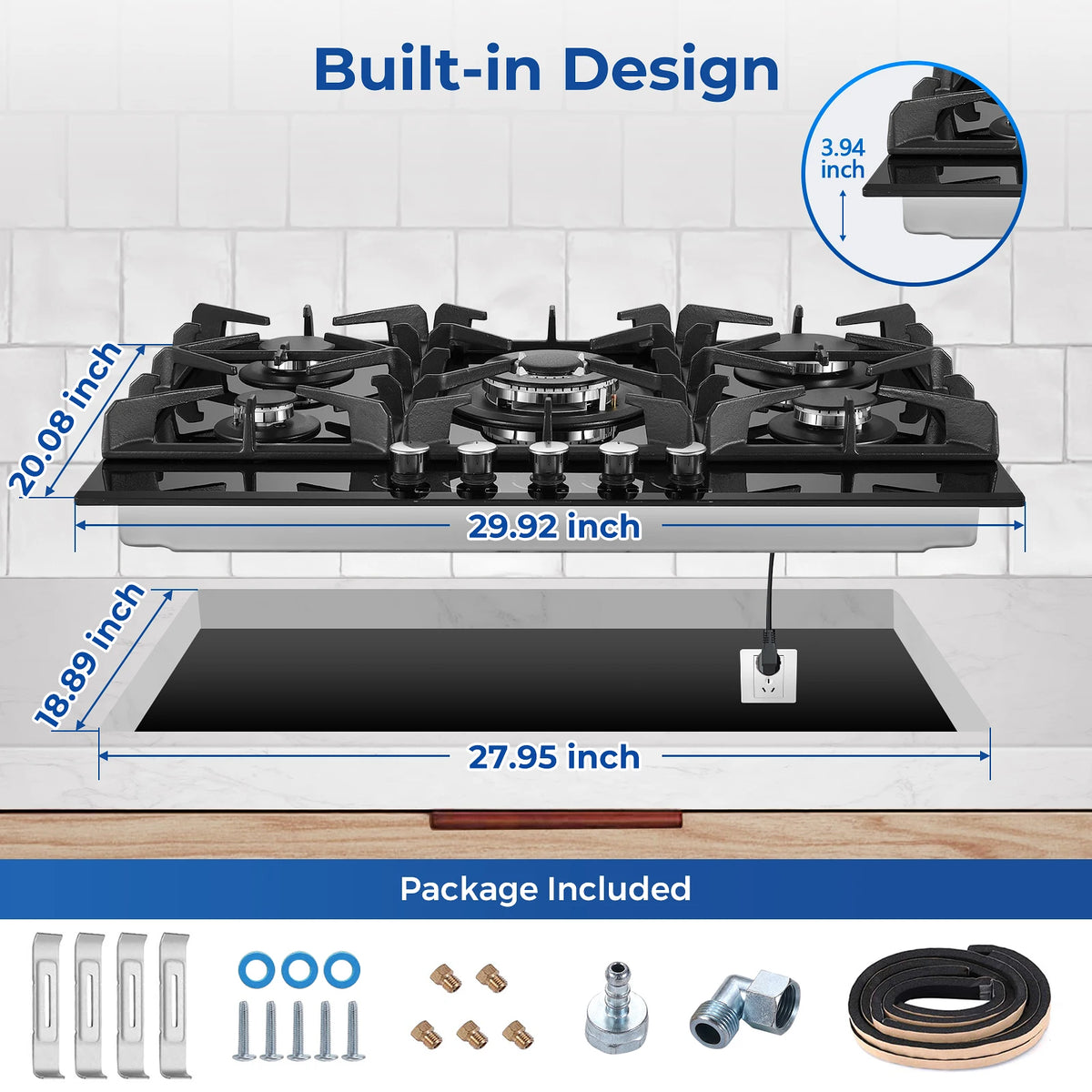

30-Inch Built-in Design with Complete Accessories

Product dimensions: 29.92" L × 20.08" W × 3.94" H. Recommended cutout: 27.95" × 18.89". Includes mounting brackets, screws, sealing tape, regulator, and conversion nozzles for a smooth installation

Before First Use

• Confirm your gas type (Natural Gas or LPG) and install the correct nozzles using the included conversion kit.

• Make sure the burner caps and grates are seated correctly and level.

• Check all gas connections with soapy water to ensure there are no leaks.

• Plug the cooktop into a 110V AC outlet for electronic ignition.

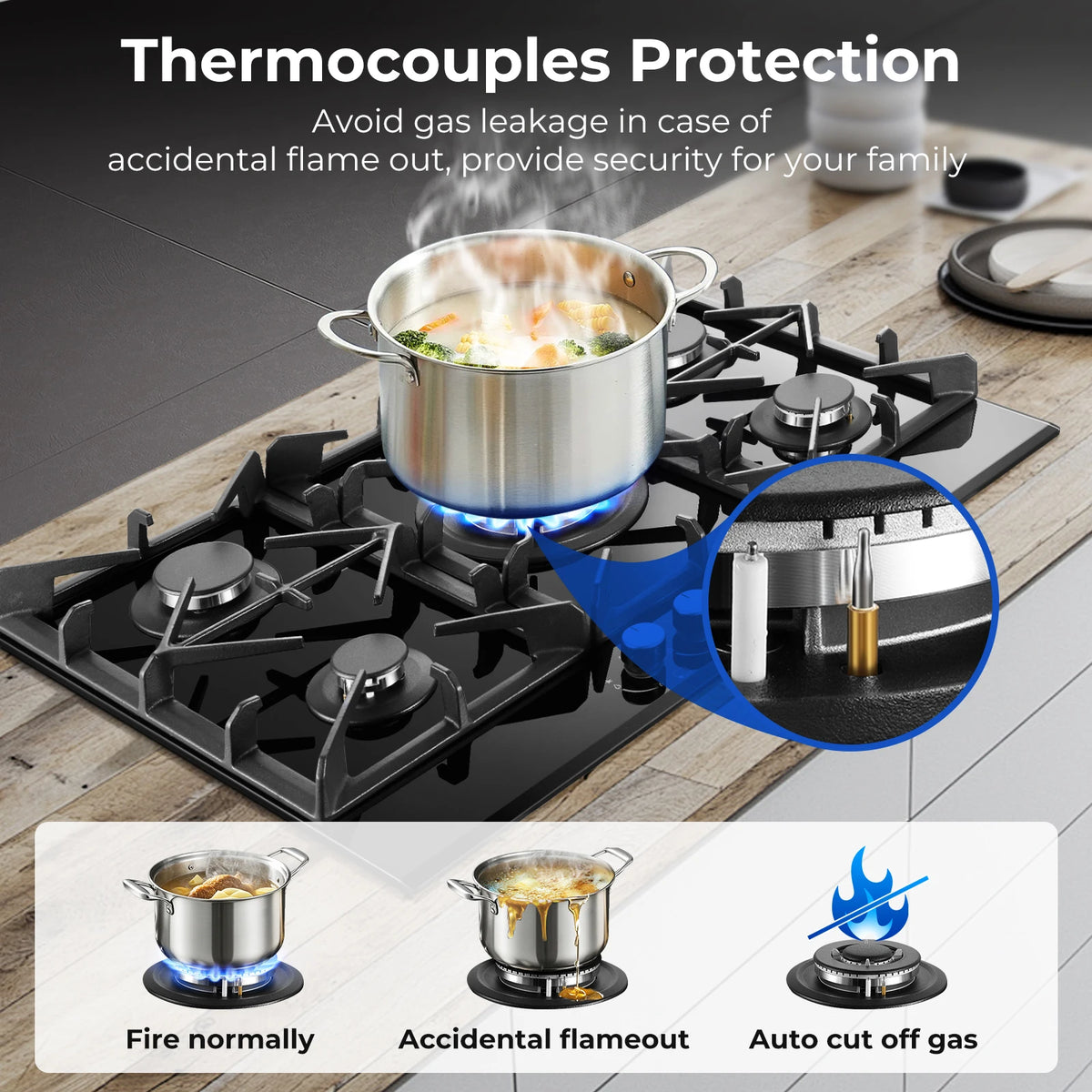

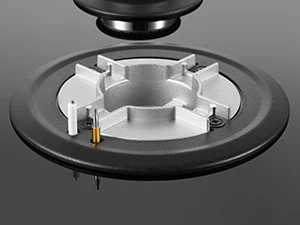

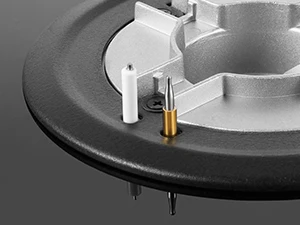

Thermocouple Flame Failure Protection

Each burner features a flame failure safety device (FFD). If the flame is accidentally extinguished, the gas supply shuts off automatically to protect your home and family from leaks

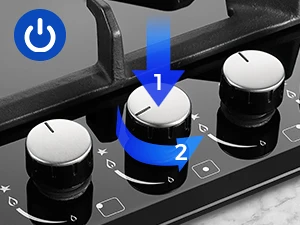

How to Light the Burner

1. Push the knob down fully.

2. Turn the knob counter-clockwise to the MAX / High position.

3. You will hear a clicking sound from the electronic ignition.

4. Once the flame appears, keep the knob pressed for 2–3 seconds to let the thermocouple heat up.

5. Release the knob and adjust the flame to your desired level.

If the Flame Goes Out After You Release the Knob

• The thermocouple safety device needs time to heat up. Hold the knob 2–3 seconds longer before releasing.

• Make sure the burner cap is centered and flat. A misaligned cap can blow the flame away from the thermocouple.

• If one burner only has this issue, clean the thermocouple probe and reseat the burner cap.









If the Burner Won’t Ignite at All

• Check that the gas supply valve is open and the tank is not empty (for LPG).

• Confirm the correct nozzle is installed for your gas type.

• Clean the ignition needle and burner ports if food or moisture is present.

• Dry the igniter area completely if the cooktop was recently cleaned.

Safety Reminder

• If you smell gas, turn off the gas supply immediately, ventilate the room, and do not use the cooktop until a qualified technician checks it.

• Do not force the knobs; press-and-turn is required for ignition.
