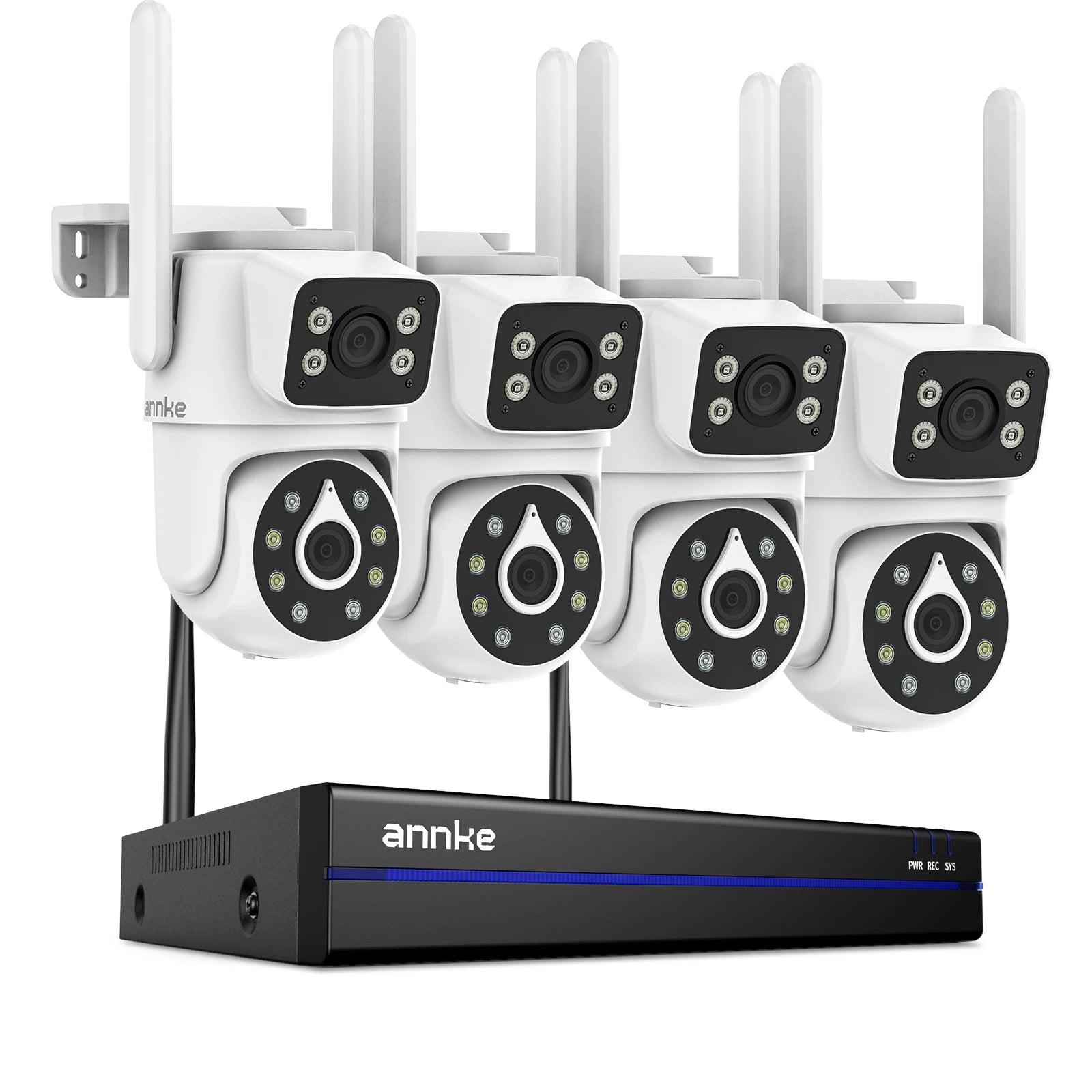

ANNKE 4MP WiFi Dual Lens Security System With 16CH NVR

Combine full panoramic coverage with uninterrupted wireless streaming through the ANNKE 16-channel NVR and its paired 4MP dual-lens PTZ camera, engineered for straightforward installation.

The primary sensor integrates a rotating PTZ module with 350° pan and 90° tilt alongside a fixed panoramic lens, delivering a combined 75° horizontal by 41° vertical field of view and 8× digital zoom. This dual-lens architecture captures wide-area context while retaining the ability to digitally magnify distant details, eliminating blind spots that single-lens systems typically leave uncovered. Connection stability relies on dual-band 2.4GHz and 5.8GHz radios featuring Wi‑Fi 6 (802.11ax) and 802.11ac protocols, allowing up to 16 wireless 8MP cameras to stream continuously without congesting your network.

Recording efficiency comes from H.264+ video compression, which significantly lowers storage consumption without degrading visible detail. A dedicated mechanical IR‑Cut filter and dual-array Smart IR LEDs provide clear monochrome vision up to 100 feet in total darkness. The NVR chassis houses one SATA bay capable of holding a single 8TB hard drive for centralized archiving, and each compatible camera includes a microSD slot for independent local backups up to 256GB. Live feeds route to displays through either a 4K HDMI port or a standard VGA connector.

Field reliability hinges on an IP66‑rated metal enclosure tested for operation between −20°C and 50°C. Instead of continuous recording waste, the firmware prioritizes event-based logging: adjustable motion detection zones generate instant snapshot emails and mobile push alerts, while integrated microphones and speakers facilitate direct communication through the official companion app. Monitor and review synchronized footage from any device using the multi-channel interface that tracks all linked streams in real time.
