ANYSECU WP-9900 Dual Band FM Two Way Radio VOX DTMF
ANYSECU WP-9900 Dual Band FM Two Way Radio VOX DTMF
Couldn't load pickup availability

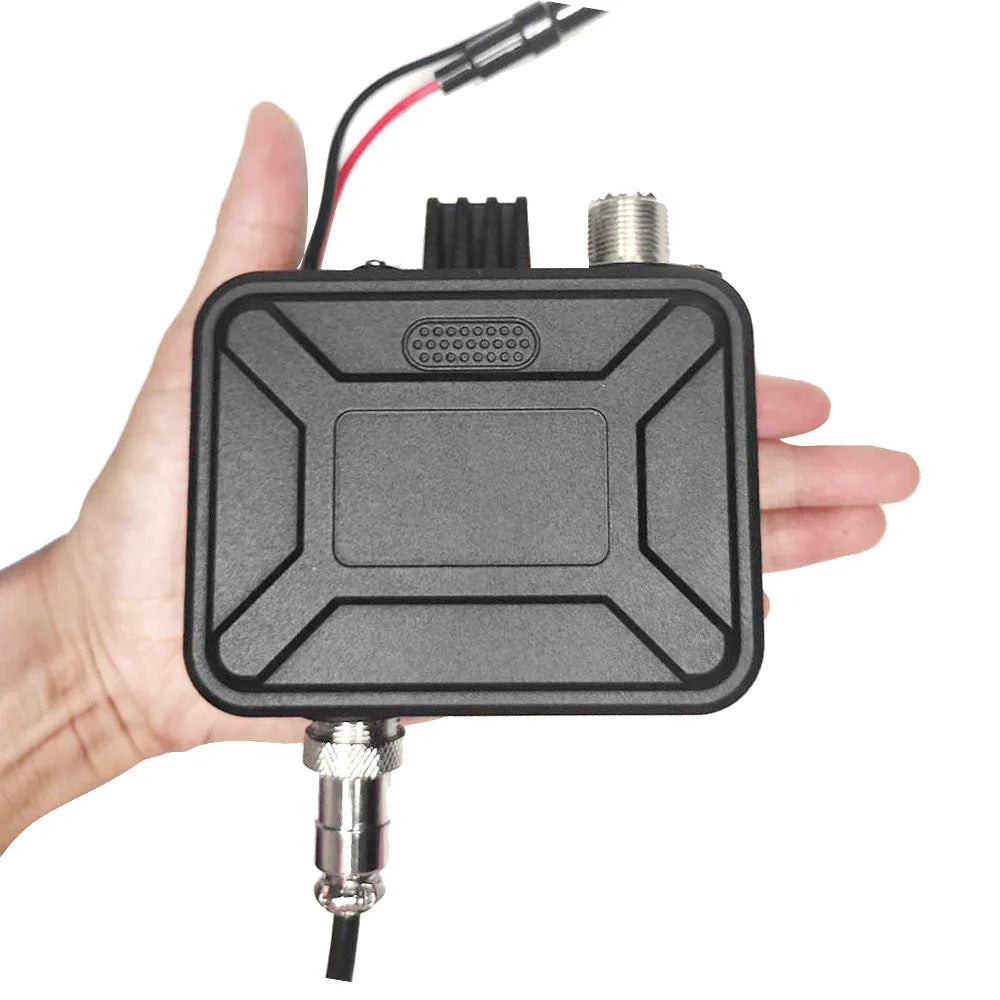

ANYSECU WP-9900 Dual-Band FM Two-Way Radio
Stay connected on the road with a dual-band vehicle radio that covers VHF and UHF frequencies. The ANYSECU WP-9900 combines 25W VHF or 20W UHF output with a large color LCD, giving you key radio information at a glance.
Use it for vehicle communication, with up to 200 channels for organizing your preferred frequencies. Its listed maximum range is 5–10 km.
- Dual-band coverage: Operates across 136–174 MHz VHF and 400–480 MHz UHF frequencies.
- Hands-free option: Built-in VOX supports voice-activated operation.
- Three-part display: Tri-display and standby battery-voltage display help you check radio status.
- Communication tools: DTMF, ANI ID, emergency alert, monitor channel, and busy-channel lock-out add useful options.
- Tuning and scanning: Choose from 200 channels, multiple channel spacings and steps, and programmable scanning.
- Everyday controls: FM radio, keypad lock, low-battery alert, signal-strength indicator, and time-out timer are built in.
- Vehicle power and build: Runs on 13.8V DC ±15%, weighs 408g, and has a plastic-and-metal construction with an IP55 rating.
The radio has a 1750Hz burst tone and supports CTCSS, DCS, 5Tone, 2Tone, and DTMF squelch options. It is CE certified and operates from -20°C to +60°C.
No battery is included. Set it up in your vehicle for a clear, convenient communication point during your time on the road.
SPECIFICATIONS
Battery Capacity(mAh): -
Battery Included: no
Brand Name: ANYSECU
Certification: CE
Dimensions: 98(W) x 43(H) x 126(D) mm
Frequency Range: 136-174 & 400-480MHz
High-concerned chemical: none
Is_Display: Yes
Material: plastic+metal
Maximum Range: 5km-10km
Model Number: WP-9900
Origin: Mainland China
Output Power(w): 10w-25w
Rechargeablebatteryincluded: No
Storage Channel: 200
Use: Motor vehicle
Walkie Talkie Type: Car
Waterproof / Water-Resistant: IP55
Note: if you need the software, please contact us.
Main Features

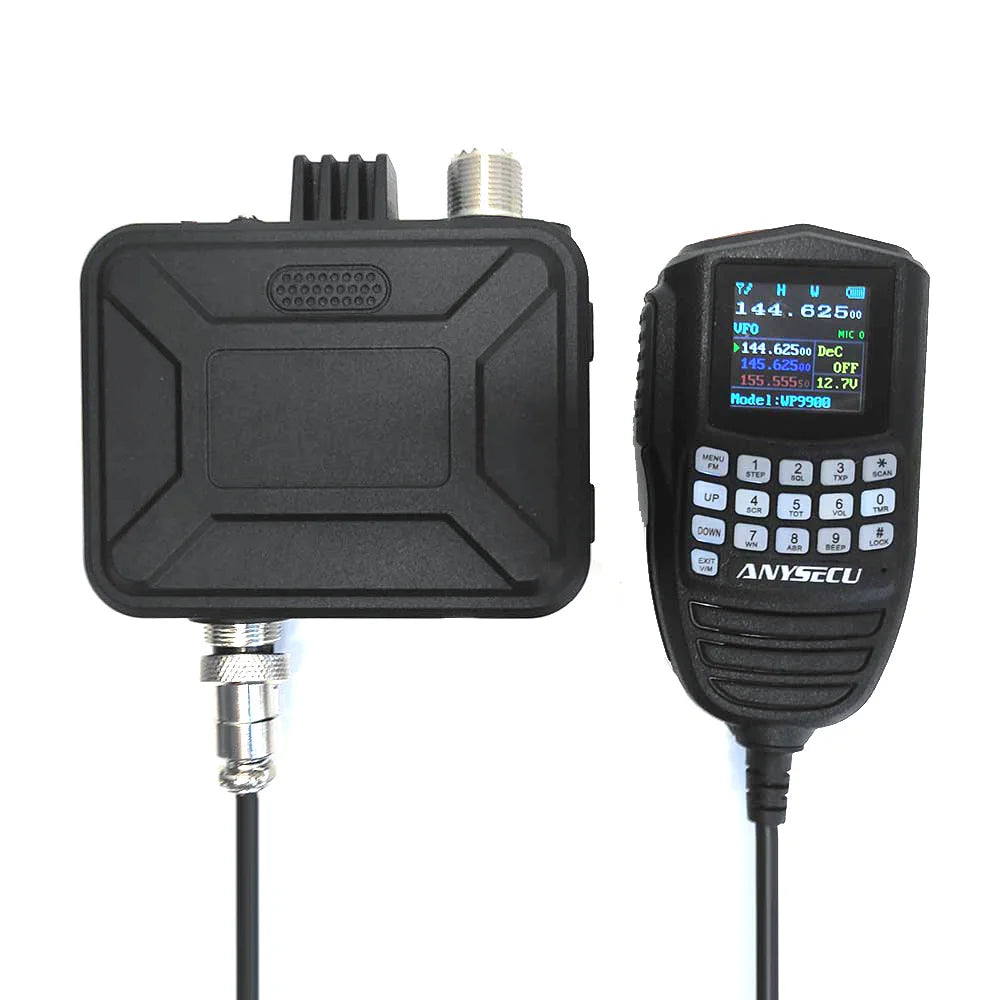

Dual Band, Trip Display / Standby
Battery Voltage Display
Built-In Vox
Busy Channel Lock-Out(Bclo)
DTMF Function
Emergency Alert
Fm Radio
1750hz Brust Tone
Ani Id
High/Low Tx Power Switchable
Keypad Lock

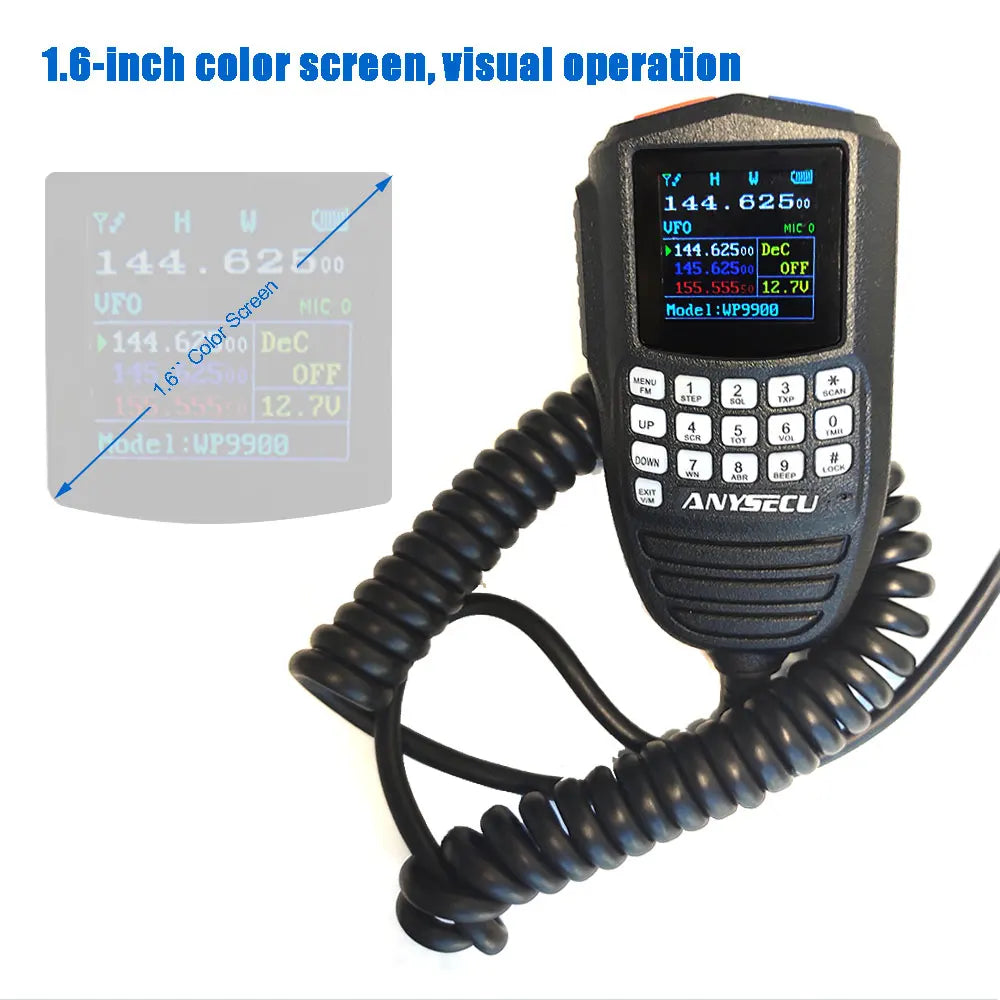

Large Color Lcd Display
Low Battery Alert
Monitor Channel

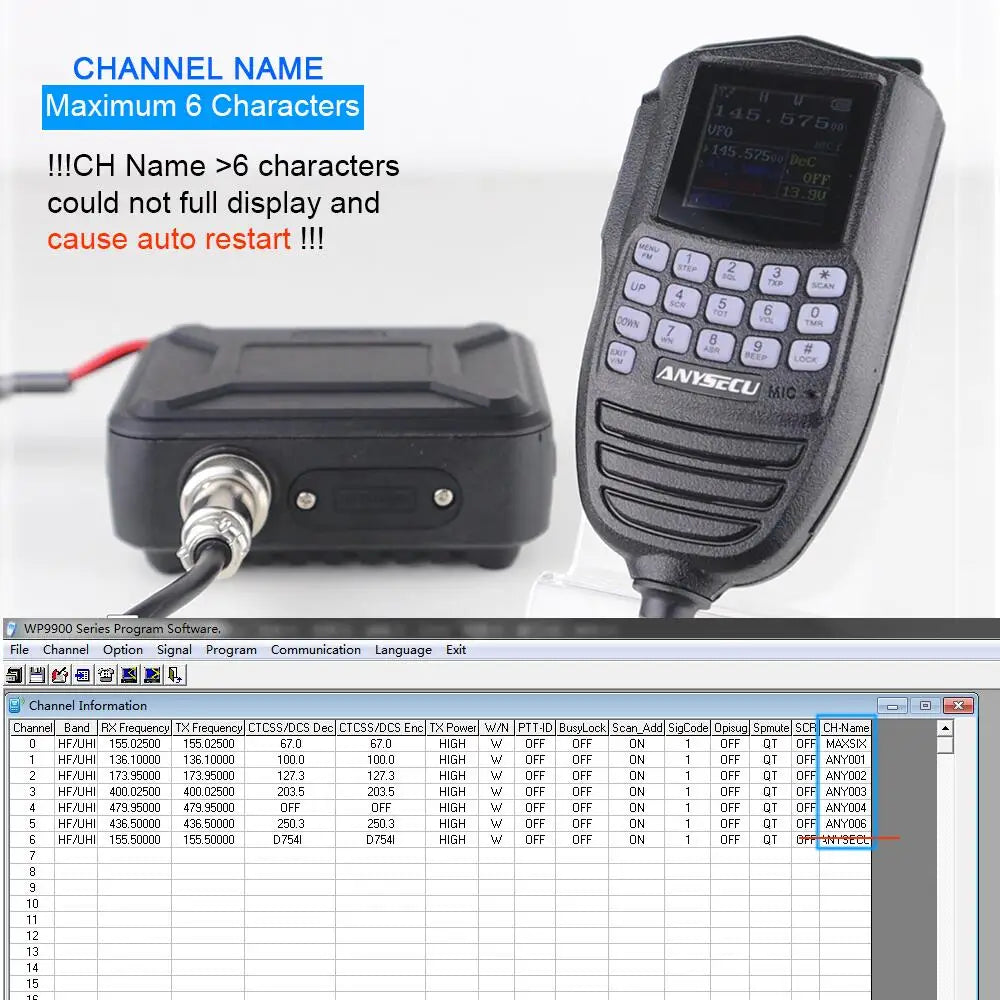

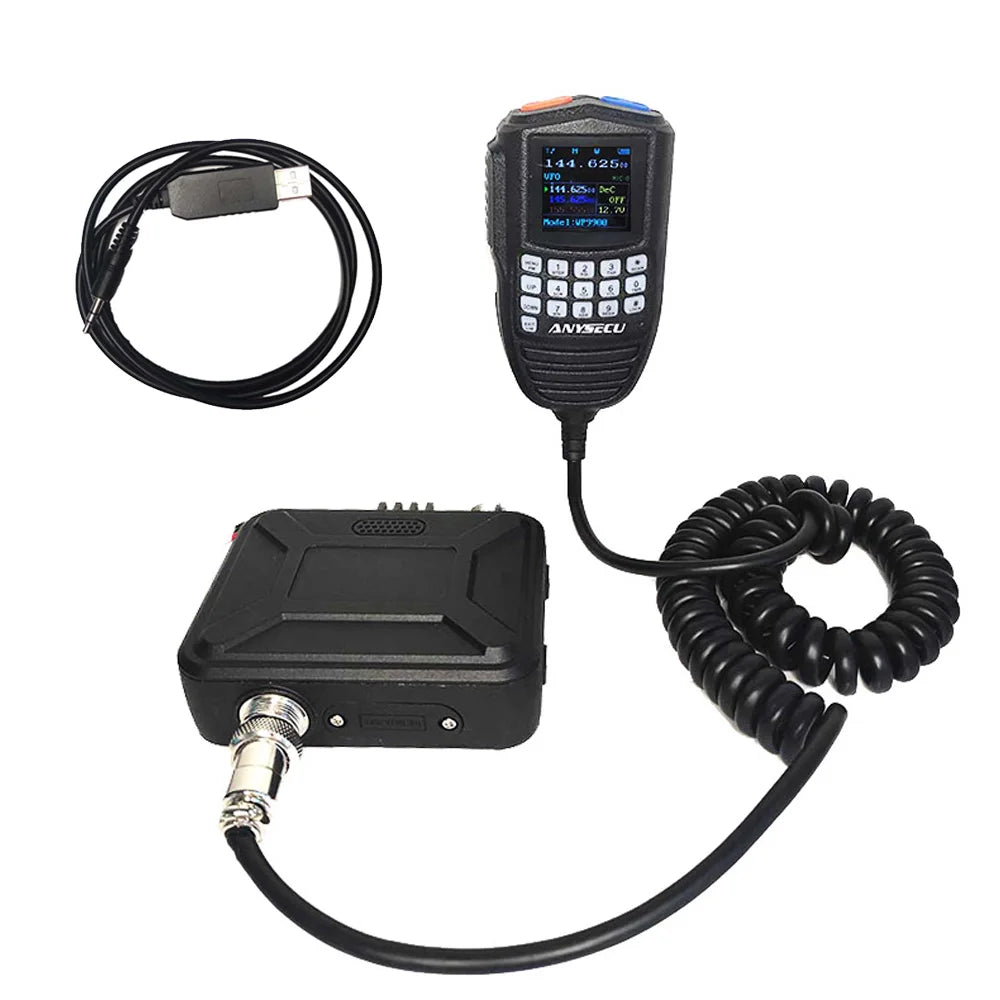

Pc Software Programmable
Scanning
Signal Strength Indicator
Time-Out Timer (Tot)
Specification | ||
Frequency Range |
VHF:136-174MHz |
|
UHF:400-480MHz | ||
Channel Capacity |
200 channels |
|
Channel Spacing |
25KHz, 20KHz, 12.5KHz |
|
Channel Step |
5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz |
|
Working Voltage |
13.8V DC ±15% |
|
Squelch way |
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF |
|
Frequency Stability |
±2.5ppm |
|
Operating Temperature |
-20℃~+60℃ |
|
Dimension(W*H*D) |
98(W)*35(H)*118(D)mm |
|
Weight |
408g |
|
Receiver | ||
Wide Band |
Narrow band |
|
Sensitivity |
≤0.25μV |
≤0.35μV |
Channel chioce |
≥70dB |
≥60dB |
Intermodulation |
≥65dB |
≥60dB |
Spurious Rejection |
≥70dB |
≥70dB |
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
Signal to noise ratio |
≥45dB |
≥40dB |
Audio distortion |
≤5% |
|
Audio output power |
≥2W±10% |
|
Transmitter | ||
Wide Band |
Narrow band |
|
Output power |
25W(VHF) /20W (UHF) |
|
Modulation Mode |
16KΦF3E |
11KΦF3E |
Channel Power |
≥70dB |
≥60dB |
Signal noise ratio |
≥40dB |
≥36dB |
Parasitic harmonic |
≥60dB |
≥60dB |
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.25KHz) |
Audio distortion |
≤5% |
|
