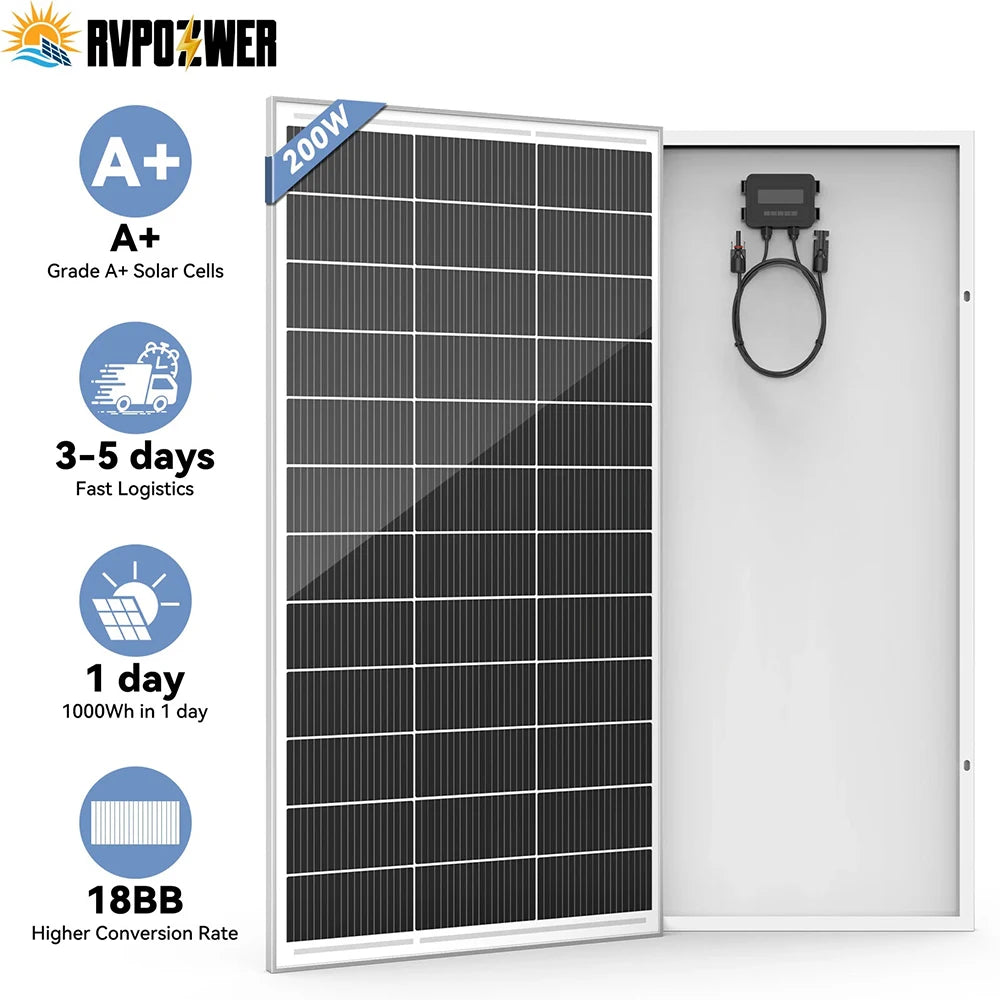

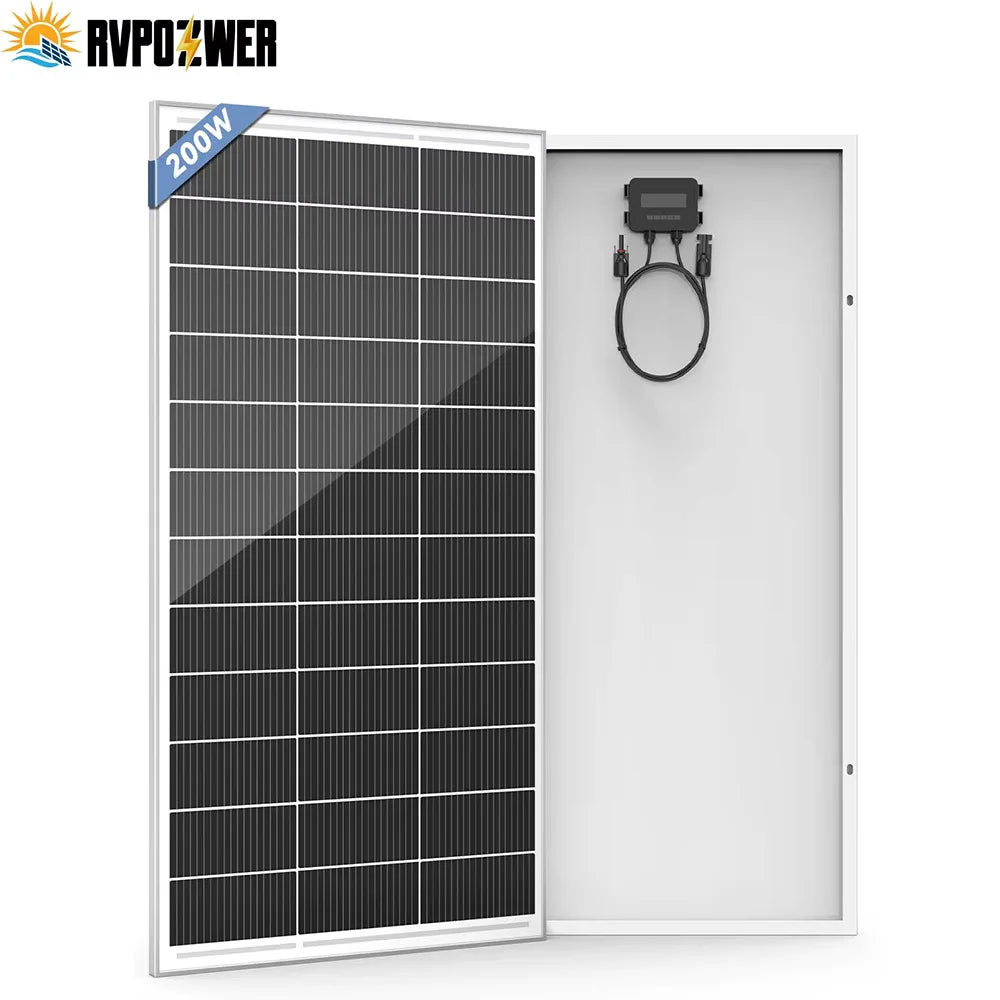

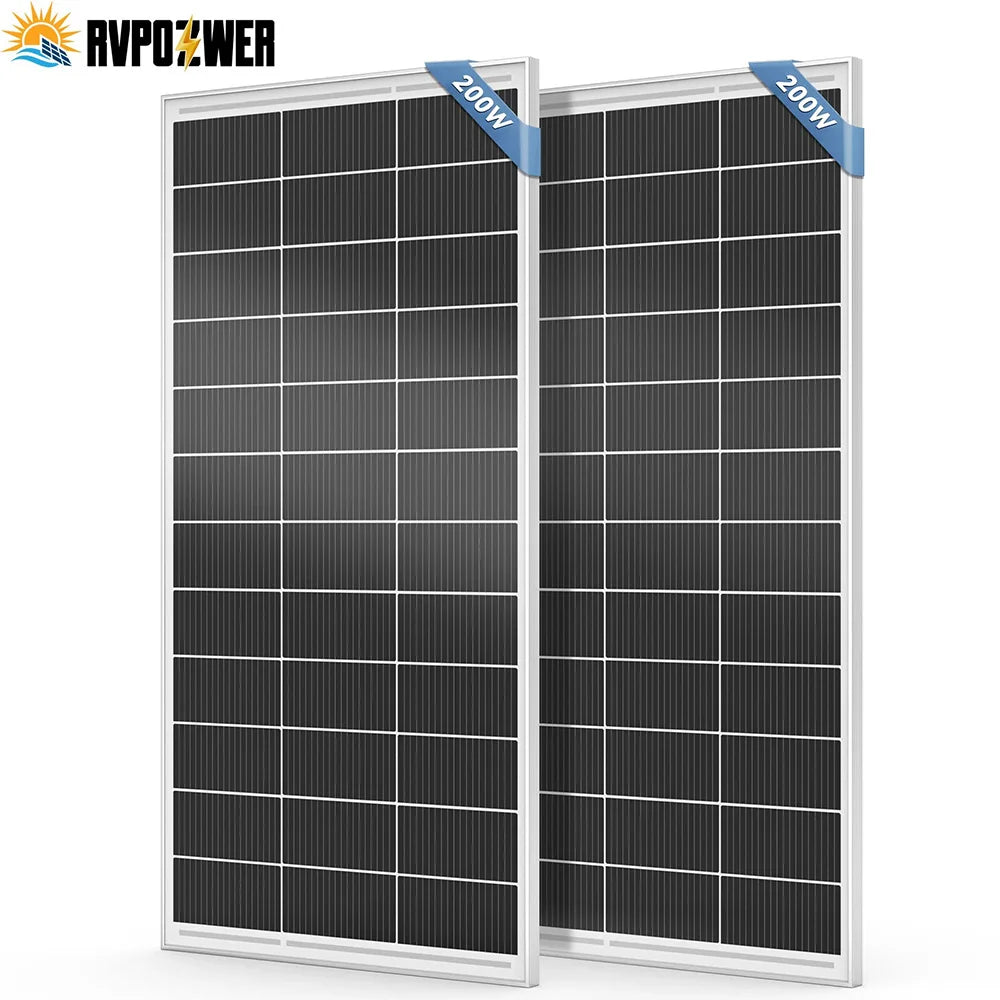

RVPOZWER 200W Rigid Monocrystalline Solar Panel

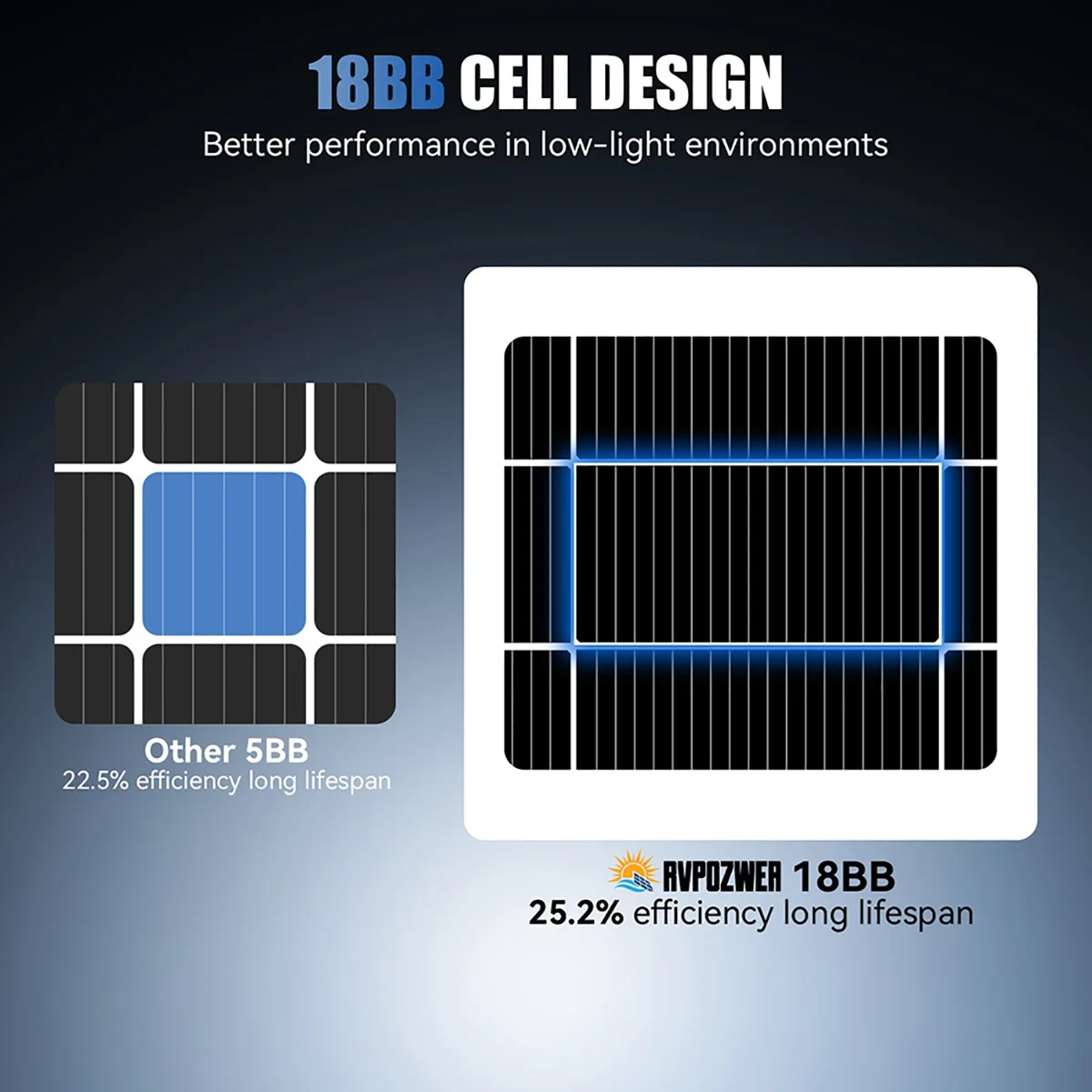

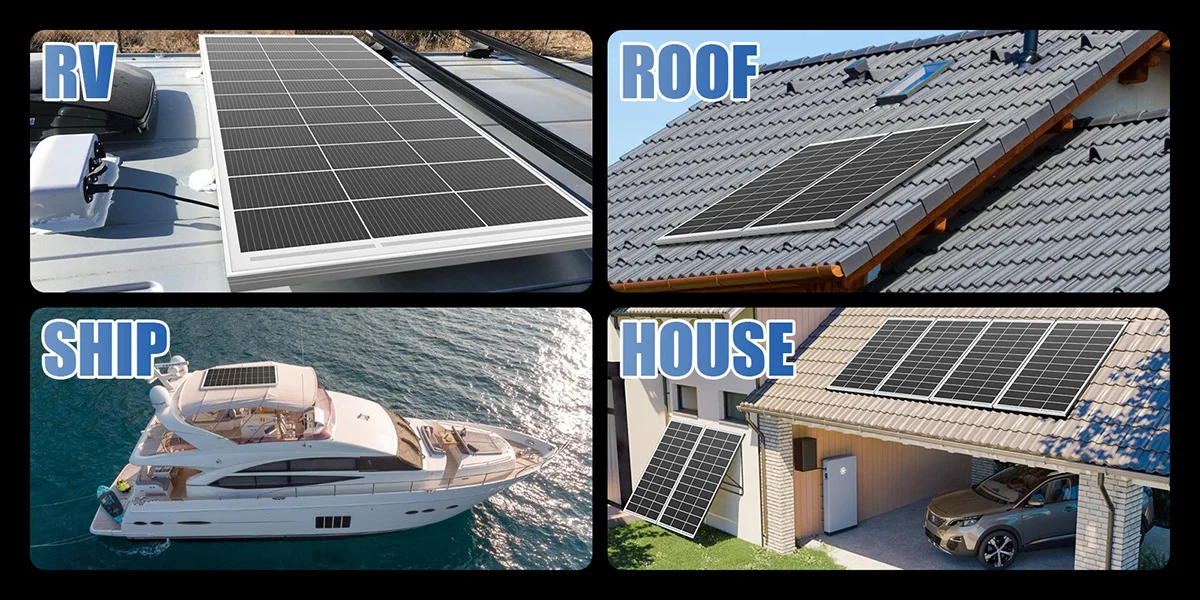

Deliver consistent 200W of clean energy for off-grid cabins, expedition rigs, and coastal storage systems with this high-efficiency rigid photovoltaic module. Engineered around 18BB N-type monocrystalline cells, the panel achieves a certified component efficiency of 25.2%, extracting maximum wattage from direct sunlight without relying on flexible polymer layers.

The electrical architecture maintains stable DC output for reliable battery charging. Operating at an open circuit voltage (Voc) of 24.62V and a working peak voltage (Vmp) of 20.52V, the unit integrates smoothly with standard 24V charge controllers and DC distribution panels. Short circuit current reaches 10.72A, delivering a steady 9.75A load current (Imp) under peak irradiance conditions.

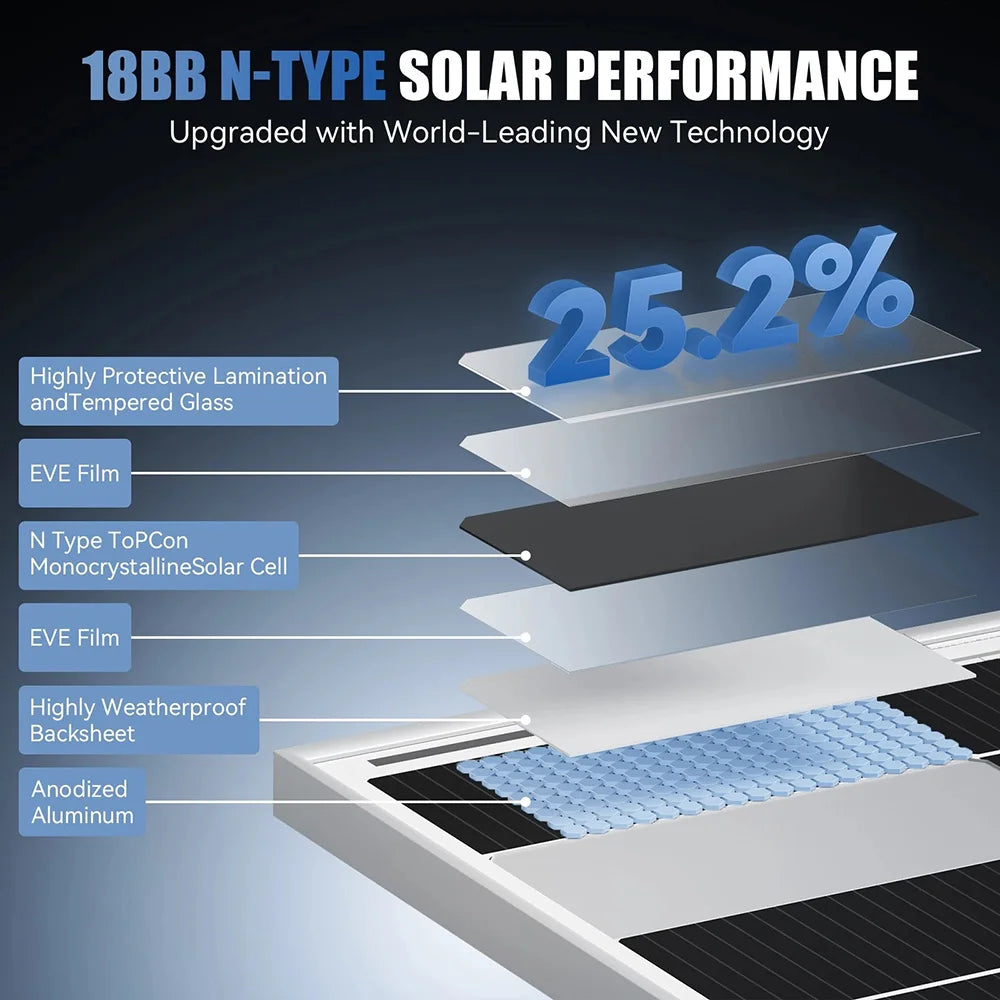

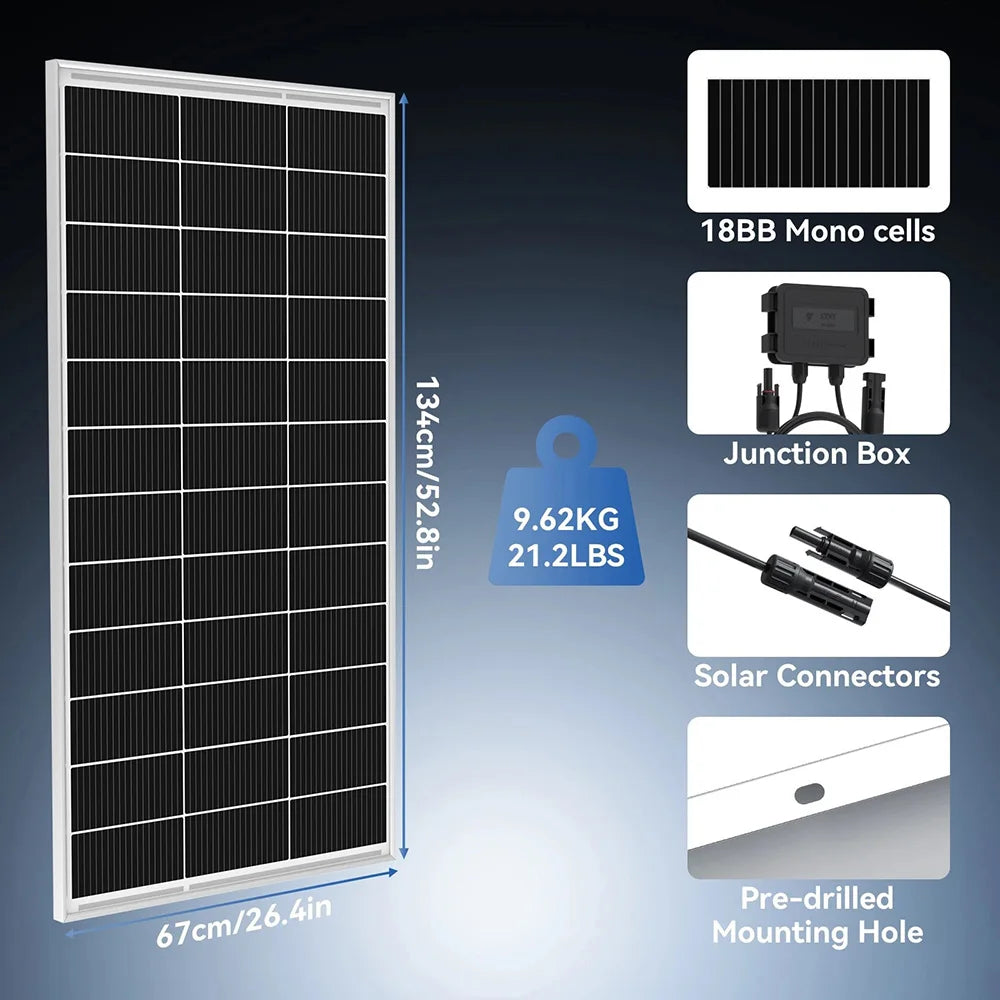

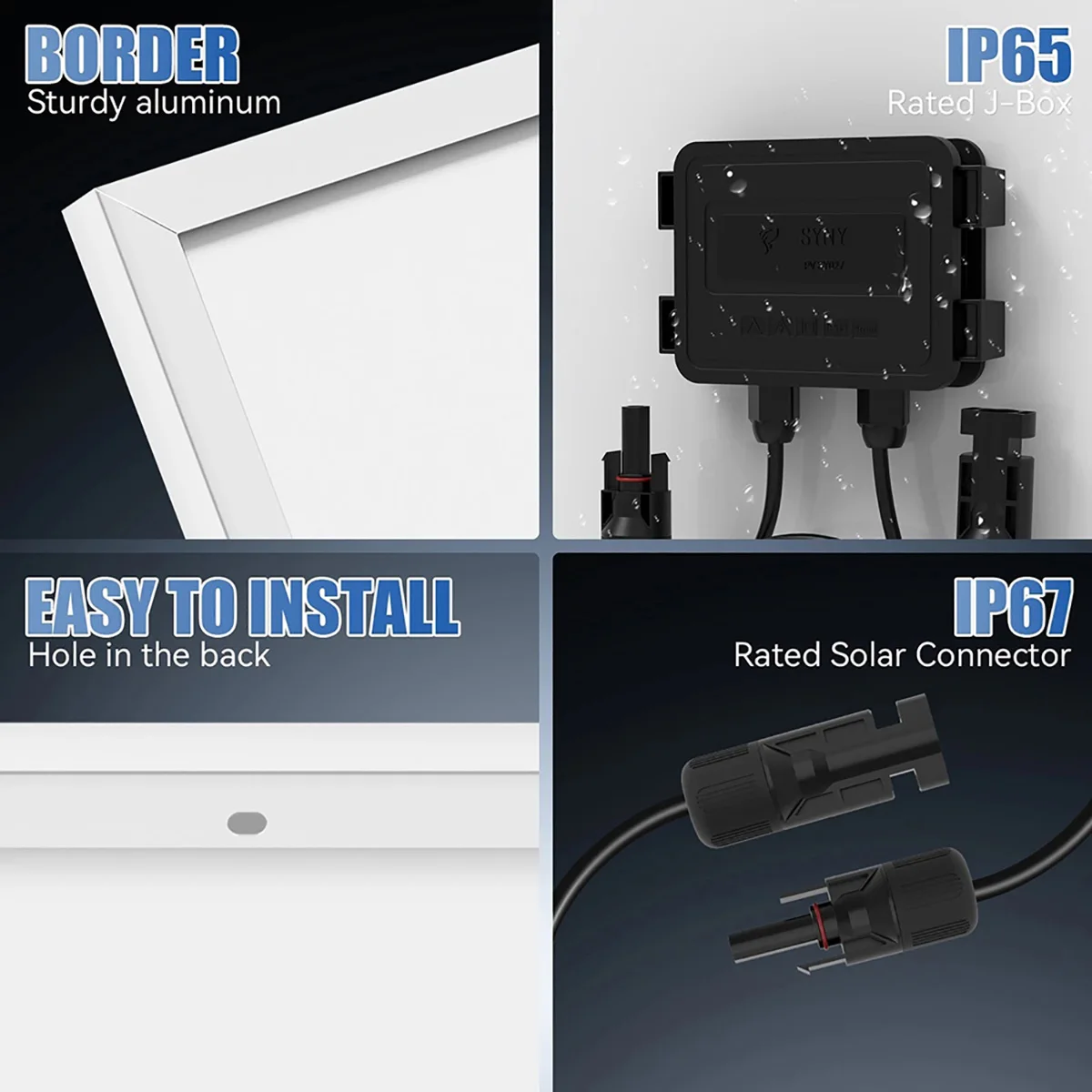

Long-term durability comes from a tempered glass faceplate fused to the cell lattice, secured by an anodized aluminium alloy frame that prevents moisture ingress and structural fatigue. The completely rigid, non-foldable design eliminates weak hinge points, making it suitable for permanent rooftop or ground installations. At approximately 140.0 × 73.5 × 6.0 cm, the footprint aligns with standard marine, truck, and shed mounting rails while presenting a low wind-load profile.

Installation & Performance Optimization

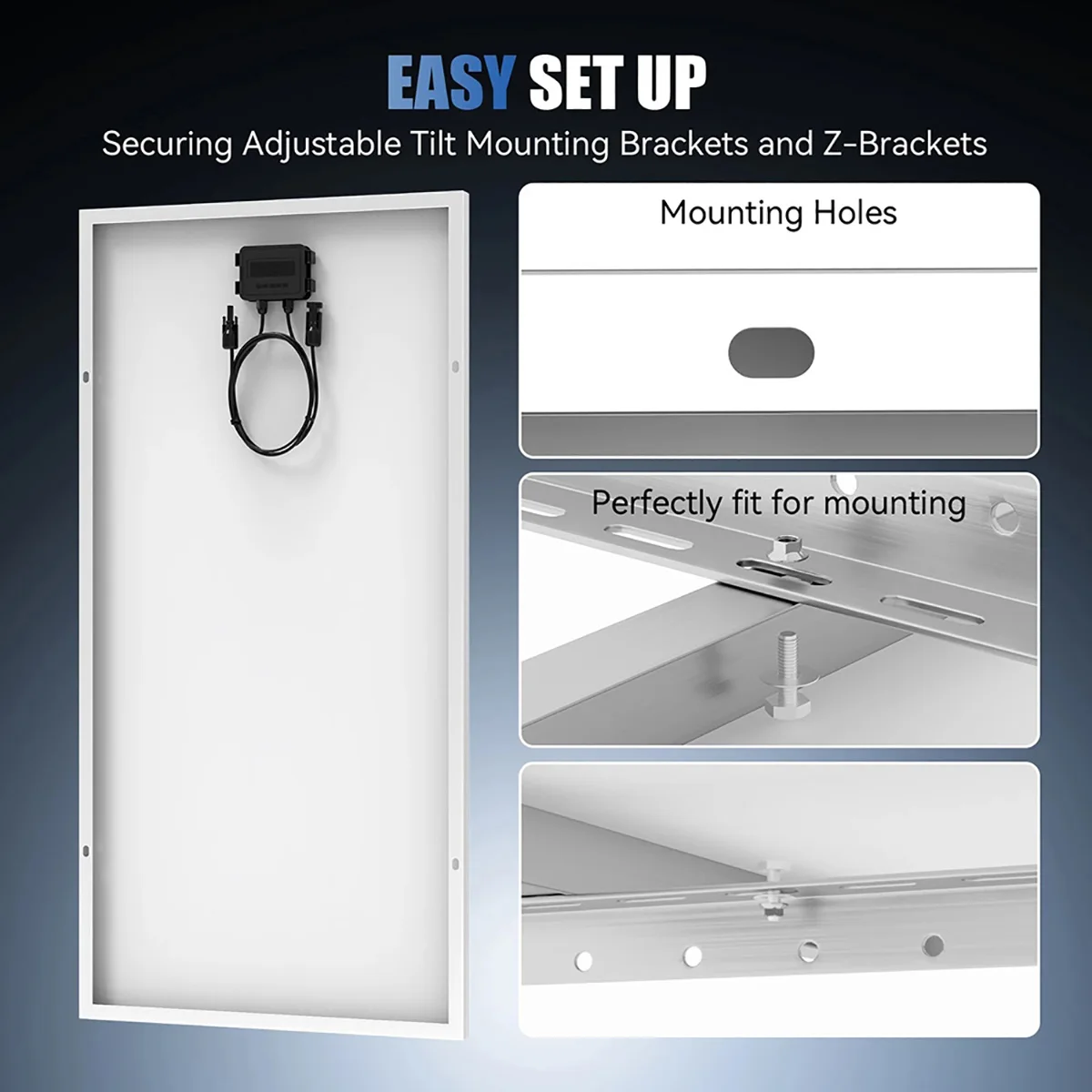

Achieve the rated 200W output by positioning the panel so the glass receives unobstructed daylight between late morning and early afternoon. Tilt the surface to roughly 40 degrees relative to the ground to capture peak solar incidence. Because the chassis lacks flexible backing, secure the panel using stainless steel brackets or heavy-duty zip ties routed through the frame edge channels.

• Maximum Power: 200W | Cell Efficiency: 25.2%
• Electrical Ratings: Voc 24.62V | Vmp 20.52V | Isc 10.72A | Imp 9.75A
• Construction: Tempered glass, N-type monocrystalline silicon cells, anodized aluminum frame
• Physical Dimensions: 140 × 73.5 × 6.0 cm
• Mounting Requirement: Fixed-angle hardware system

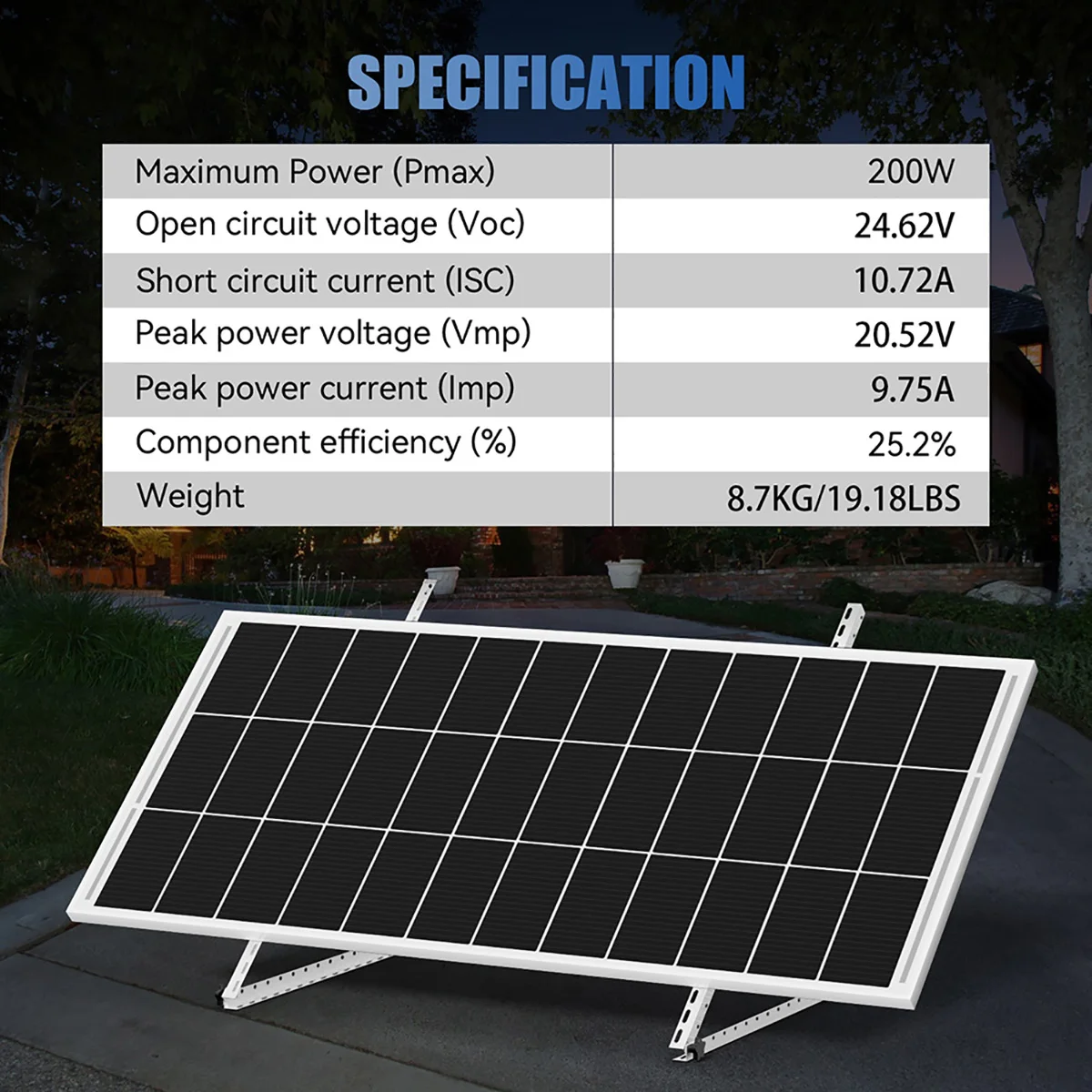

SPECIFICATIONS

Brand Name: Rvpozwer

Component efficiency (%): 25.2%

Flexible Solar Panel: No

Foldable Solar Panel: No

High-concerned chemical: none

Maximum Power(Pmax): 200W

Number of Panels: 1

Opencircuitvoltage(Voc): 24.62V

Origin: Mainland China

Peak power current(Imp): 9.75A

Peak power voltage (Vmp): 20.52V

Rigid Solar Panel: Yes

Short circuit current(Isc): 10.72A

Size(LWH): About 140.00*73.50*6.00cm

Type: Solar Panel

is_customized: Yes

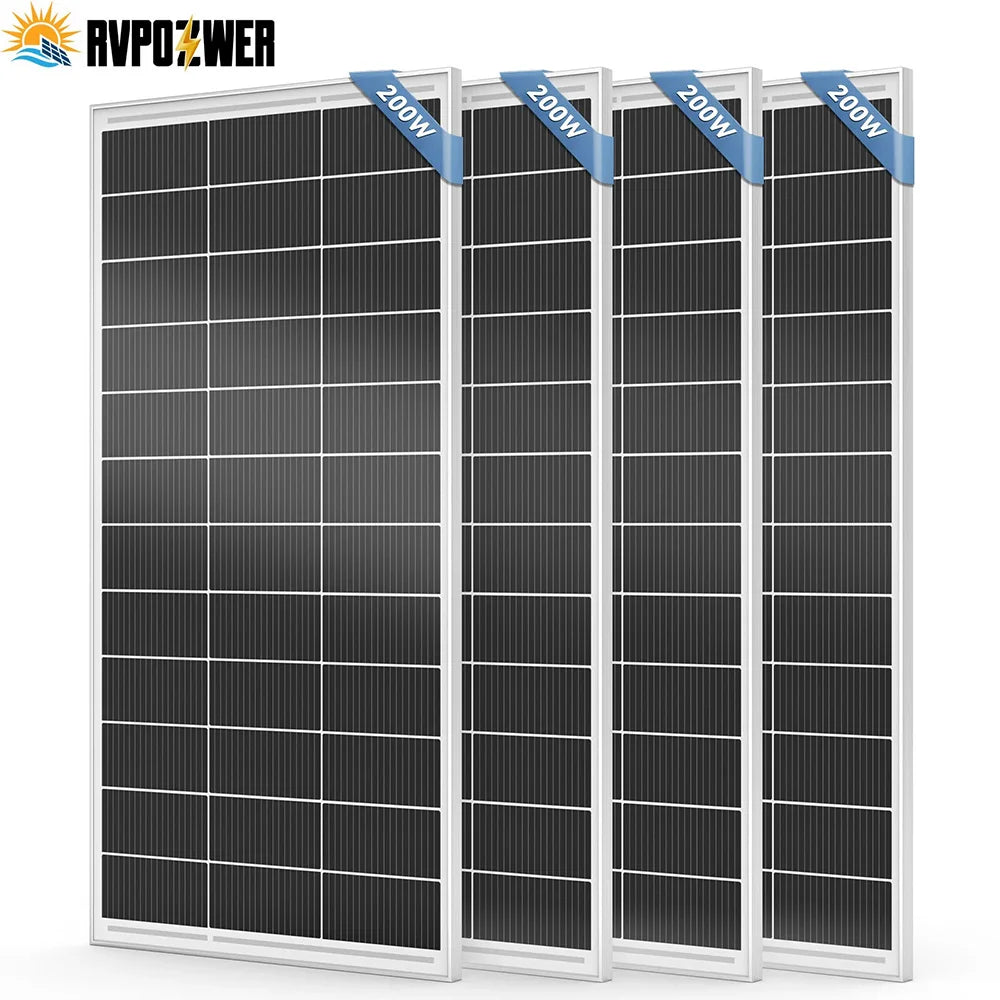

RVPOZWER 200W/400W/800W Rigid Solar Panels 18BB N-Type Mono Cells High Efficiency

PV Power for Home RV Charge Outdoor Off-Grid

Product Datas:

Maximum Power(Pmax): 200W

Component efficiency (%): 25.2%

Opencircuitvoltage(Voc): 24.62V

Short circuit current(Isc): 10.72A

Peak power voltage (Vmp): 20.52V

Peakpower current(Imp): 9.75A

Material:

Glass:Tempered Glass

Cell Material: monocrystalline silicon

Frame: Anodized Aluminium Alloy

Suggested testing environment:

1. Weather: Choose a sunny and sunny time period (around noon).

2. Lighting: Ensure that the components are unobstructed, tilted at an angle of about 40 degrees to the ground, and receive maximum lighting.
