SucceBuy Manual Tile Cutter with Infrared Laser Positioning

Make straight, measured cuts on ceramic and porcelain tiles with a manual cutter designed for steady scoring and snapping. Its infrared laser positioning helps you line up each cut, while three aluminum rulers make it easier to repeat measurements across multiple tiles.

Use it while laying a new floor or preparing polished tiles for a room renovation. The ergonomic rubber handle gives you a comfortable grip, and built-in wheels and a lifting handle help you move the cutter around your workspace.

• All-steel frame: The sturdy steel construction and solid rail provide a stable base for tile cutting.
• Smoother sliding head: Ball bearings and a built-in oil can help the head travel smoothly along the rail.
• Alloy cutter wheel: The hard alloy wheel is made for clean, accurate scoring, and an extra wheel is included.
• Tile compatibility: Use the cutter with ceramic, porcelain, floor and polished tiles.
• Cutting thickness: The cutter handles tiles from 6–15 mm (0.24–0.59 in) thick.
• Included: Each package contains one tile cutter and one set of related accessories.

Available sizes:

• 31.5 in (800 mm): Maximum cutting width 800 mm; minimum cutting width 35 mm; 4 in (10 cm) bottom plate; 23 bearings.
• 35 in (900 mm): Maximum cutting length 900 mm; maximum cutting width 800 mm; minimum cutting width 35 mm; 27 bearings; double-track guide rail; 56.4 × 28.5 × 9.2 in (143.4 × 72.4 × 23.5 cm); 35 lb (16 kg).
• 39.4 in (1000 mm): Maximum cutting length 1000 mm; minimum cutting width 35 mm; 23 bearings; single-track guide rail; 40.5 × 23.7 × 9.9 in (102.9 × 60.2 × 25.3 cm); 35 lb (16 kg).
• 47 in (1200 mm): Maximum cutting length 1200 mm; 27 bearings; 4 in (100 mm) bottom plate; 56.4 × 24 × 9.2 in (143.4 × 61 × 23.5 cm); net weight 49.2 lb (22.3 kg).

Keep the cutter close at hand as you work through a tile layout, using the laser guide to align each new score.

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Origin: Mainland China

Power Source: DC

Voltage: 220V

Product Description

47-inch Manual Tile Cutter

Premuim Steel & Large Cutting Capacity & High Precision

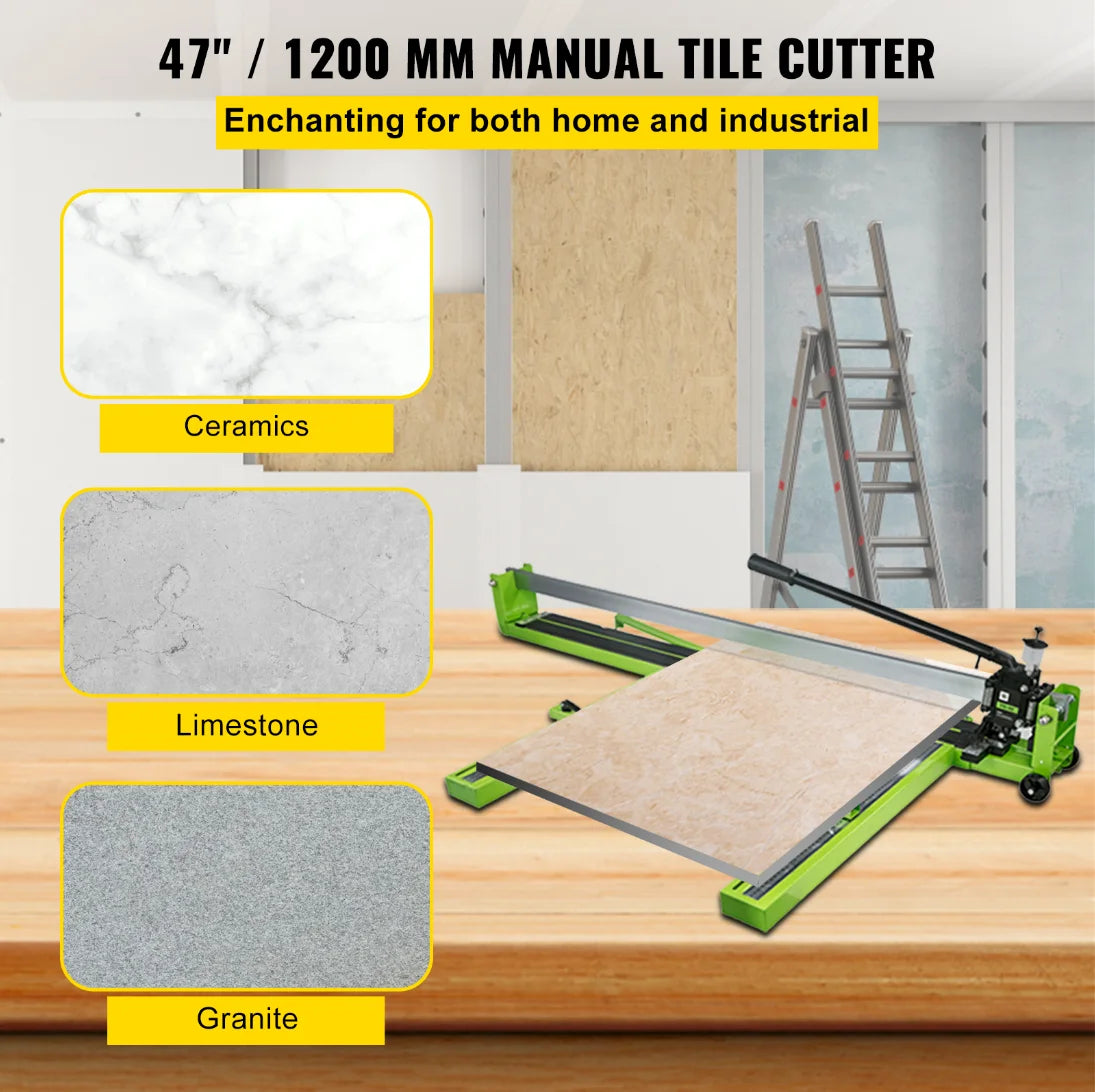

These ceramic tile cutters are made of high-quality steel, brief and simple structure, convenient and safe to use, fast cutting. Featuring Max. Cutting capacity 1200 mm cutting width and 6-15 mm cutting thickness. Ideal for cutting stone materials, including normal floor tiles, polished tiles, etc.

• Heavy Duty Construction

• Upgraded Sliding Head

• Quality Cutter Wheel

• Precision Positioning Cutting

• Thoughtful Design

Tough Equipment & Tools, Pay Less

SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today,SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose SucceBuy?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Key Features

All-Steel Frame

The manual cutting machine features with brief and simple structure. It provides convenience and fast cutting, secure to operate.

Sliding Machine Head

High-quality ball bearing and built-in oil can, smooth slide without obstacles, this manual title cutter is more stable to operate.

Quality Cutter Wheel

The alloy wheel ensures cuttings accurate and clean, greatly improves the working efficiency — an extra one for you.

Precision Cutting

Applied laser positioning, upgraded three aluminum rulers, and angle cuttings for accurate cuttings. Effortless to cut tile.

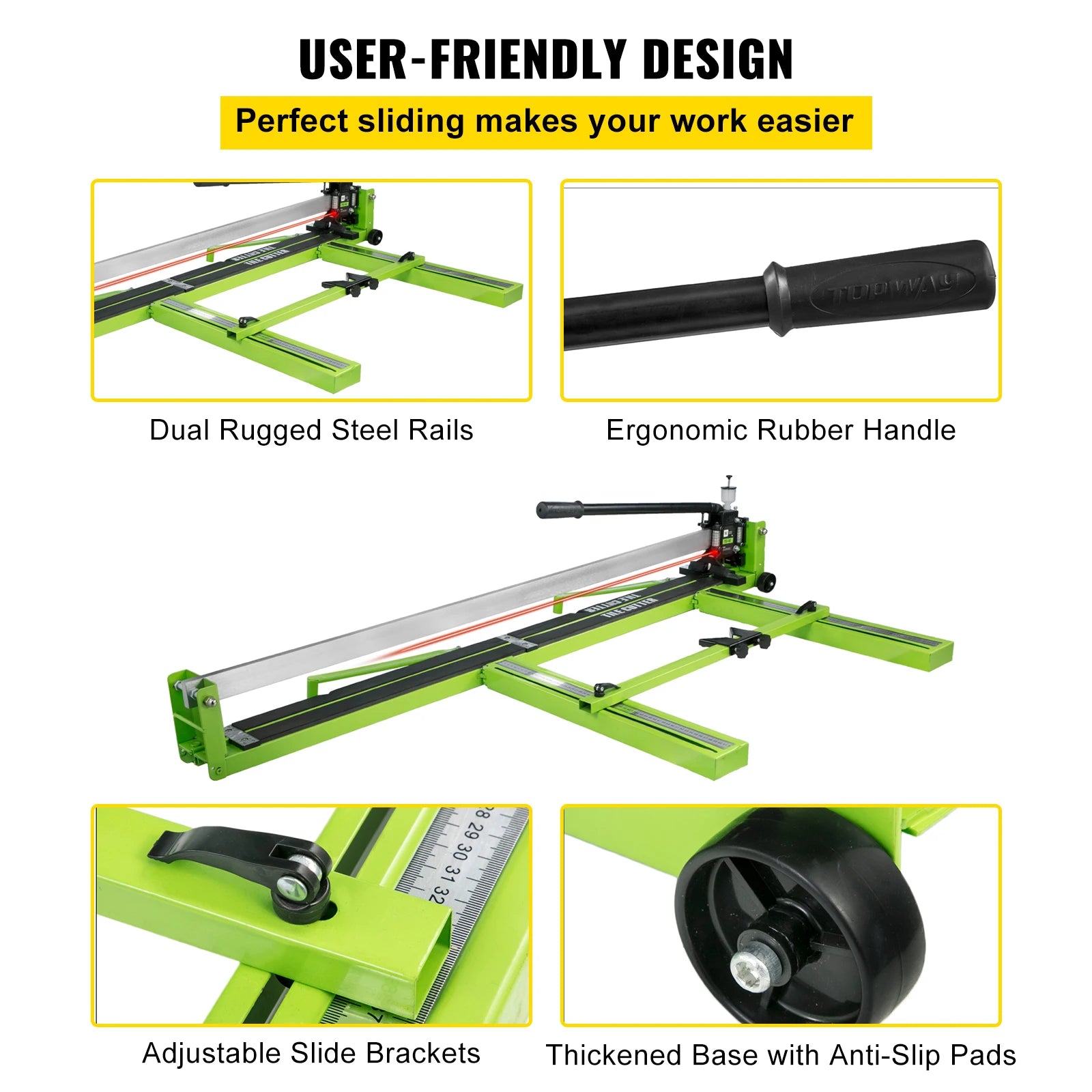

Portable & Ergonomic

Portable design, easy-to-carry handle, and ergonomic rubber handle. Two wheels for convenient movements.

Wide Application

The ceramic tile cutter applies to all types of tiles, including ceramic and porcelain tiles — floor tile cutter manual.

47 inch ( 1200mm)

• Material: Steel

• Max. Cutting Length: 47'' / 1200 mm

• Cutting Thickness: 0.24" - 0.59" / 6 - 15 mm

• Bearing Amount: 27

• Bottom Plate Width: 4'' / 100 mm

• Net Weight: 49.2 lbs / 22.3 kg

• Item Dimensions: 56.4" x 24" x 9.2" / 143.4 x 61 x 23.5 cm

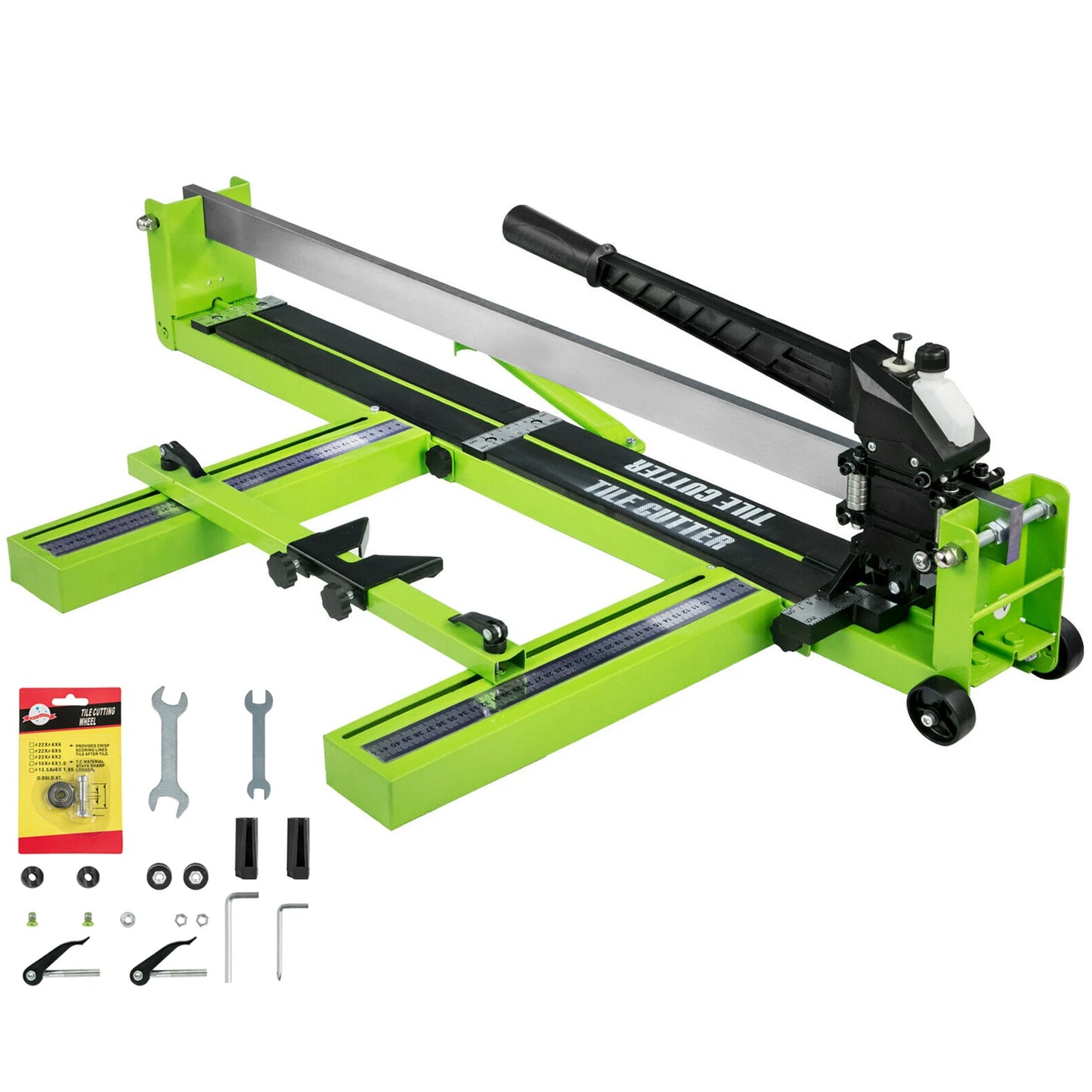

Package Content

• 1 x Tile Cutter

• 1 x Set of Related Accessories

31.5 inch ( 800mm)

• Material: Steel

• Max. Cutting Width: 31.5" (800mm)

• Min. Cutting Width: 1.38" (35mm)

• Max. Cutting Thickness: 0.24"-0.59" (6-15mm)

• Bearing Amount: 23

• Bottom Plate Width: 4" (10cm)

Package Content

• 1 x Tile Cutter

• 1 x Set of Related Accessories

35 inch ( 900mm)

• Model: TG-02

• Bottom Plate Material: Steel

• Bearing Amount: 27

• Bottom Plate Width: 4" / 10 cm

• Min. Cutting Width: 1.38" / 35 mm

• Max. Cutting Width: 31.49" / 800mm

• Max. Cutting Length: 35" / 900 mm

• Cutting thickness Range: 0.24" - 0.59" / 6 mm - 15 mm

• Guide Rail: Double Track

• Item Dimension: 56.4 x 28.5 x 9.2 in / 143.4 x 72.4 x 23.5 cm

• Item Weight: 35 lbs / 16 kg

Package Content

• 1 x Tile Cutter

• 1 x Set of Accessories

39.4 inch ( 1000mm)

• Bottom Plate Material: Steel

• Bearing Amount: 23

• Bottom Plate Width: 4" / 10 cm

• Min. Cutting Width: 1.38" / 35 mm

• Max. Cutting Length: 39.4" / 1000 mm

• Guide Rail: Single Track

• Features: Infrared

• Cutting thickness Range: 0.24" - 0.59" / 6 mm - 15 mm

• Item Dimension: 40.5" x 23.7" x 9.9" / 102.9 x 60.2 x 25.3 cm

• Item Weight: 35 lbs (16 kg)

Package Content

• 1 x Tile Cutter

• 1 x Set of Accessories

Features & Details

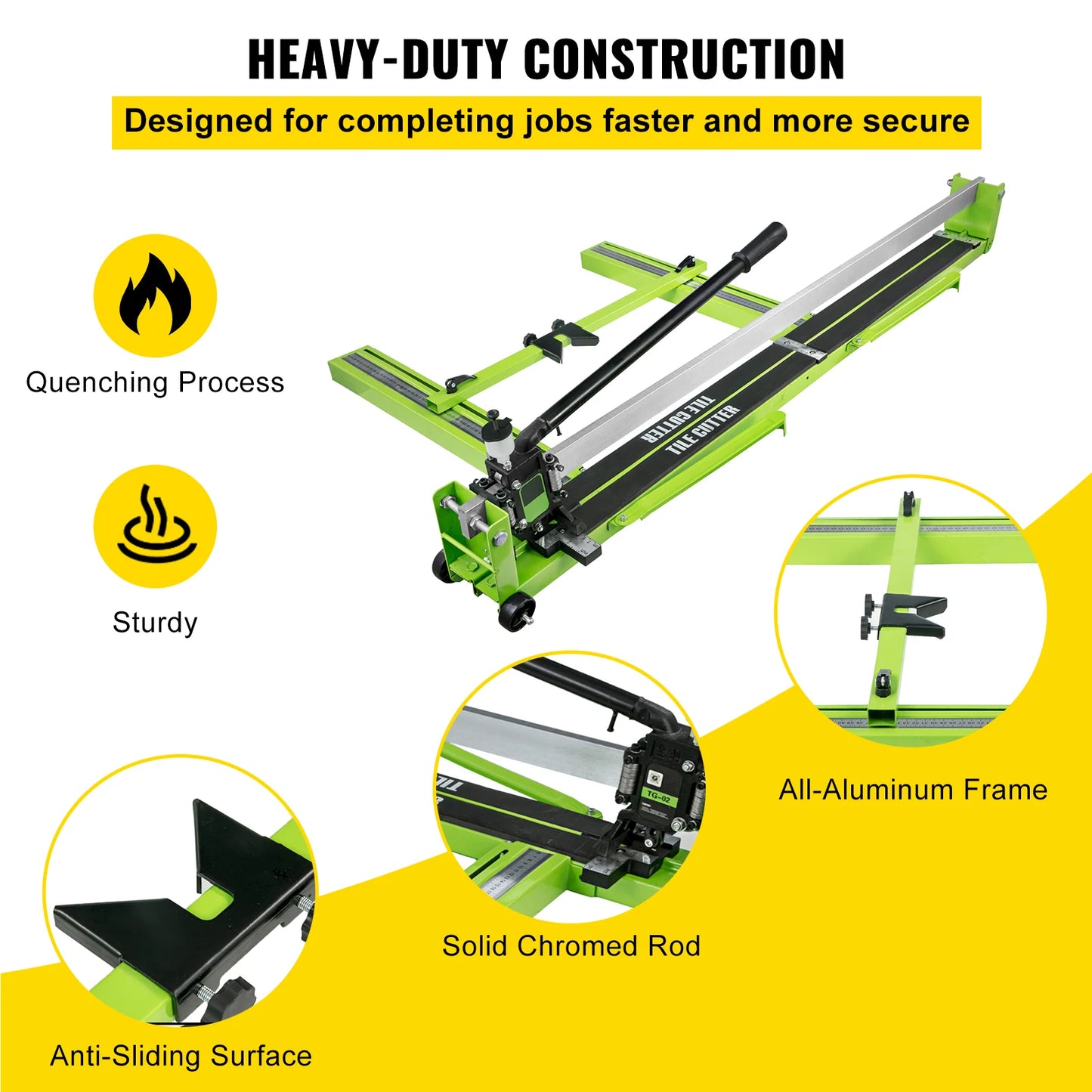

• Heavy Duty Construction: The frame of the tile cutter tools hand tool is made of heavy all-steel material, compact, strong, and durable. The solid rail makes cutting work more accurate and suitable for long-term use.

• Upgraded Sliding Haed: With enhanced spring function, 27 ball bearings and built-in oil can, the sliding head ensures the cutting more smoothly without shaking and easy to operate. Score and snap tile cutter.

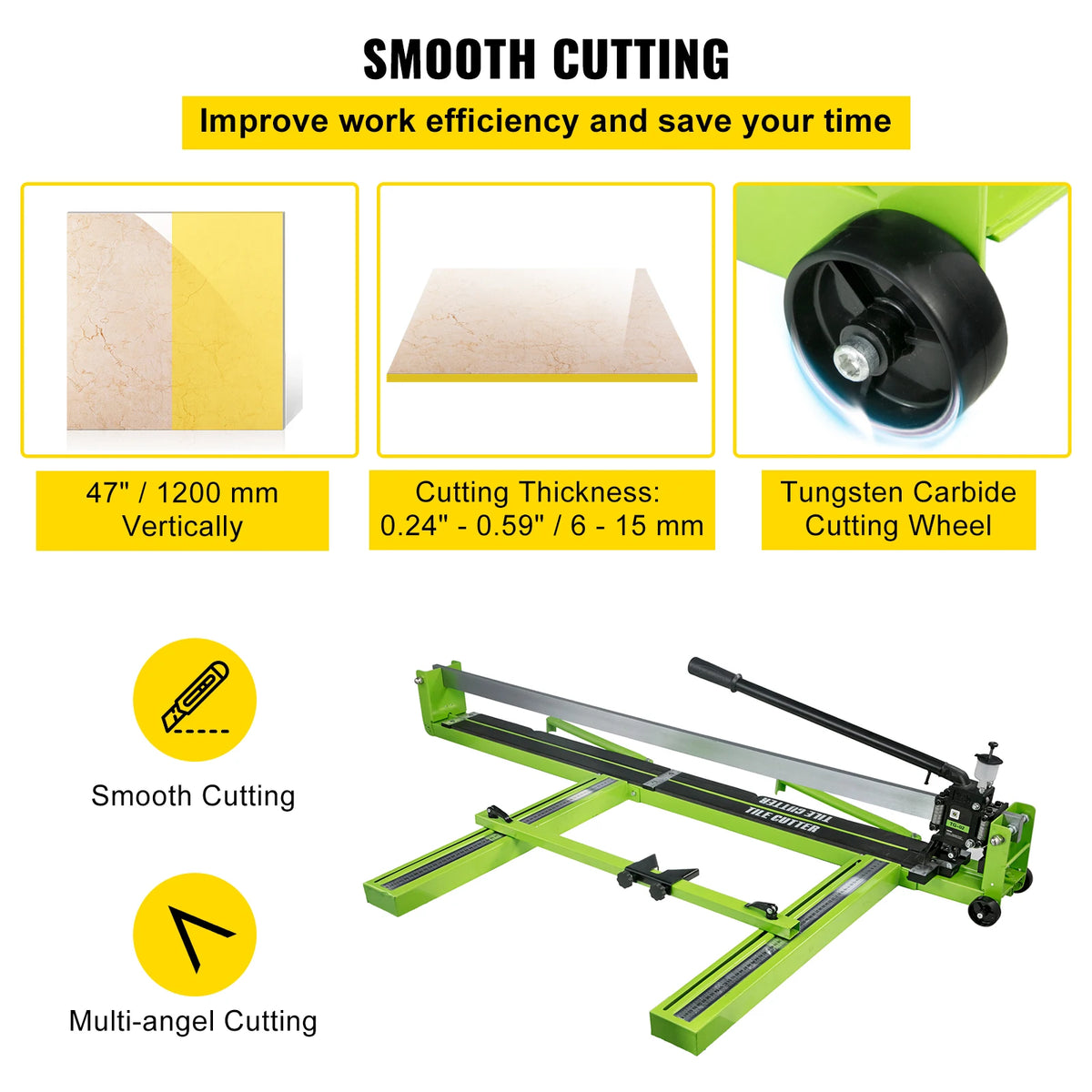

• Alloy Cutter Wheel: Super hard alloy cutter wheel ensures smooth cuttings accurate and clean. Max. Cutting width 1200mm. Max. Cutting Thickness: 6-15mm. We especially provide an extra one for free.

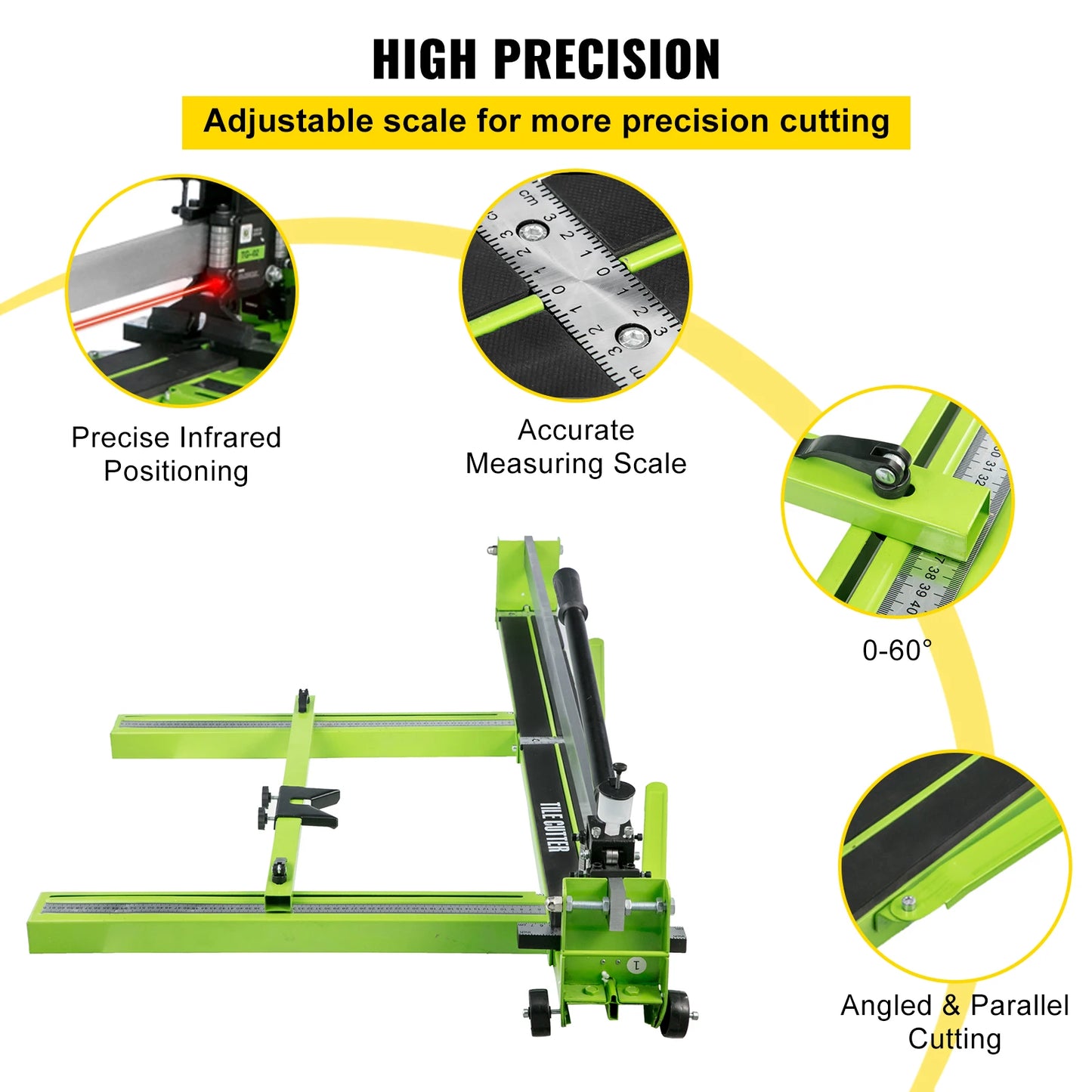

• Precision Positioning Cutting: The newly upgraded laser infrared positioning function can effectively improve the accuracy of this porcelain tile cutter. And three aluminum rulers can make fast cuttings in different sizes continuously.

• Thoughtful Designs: The anti-skid rubber handle is ergonomic and more comfortable to use, providing better-using experience. Lifting handle help to move the handle to match with moving roller, easy to carry.
