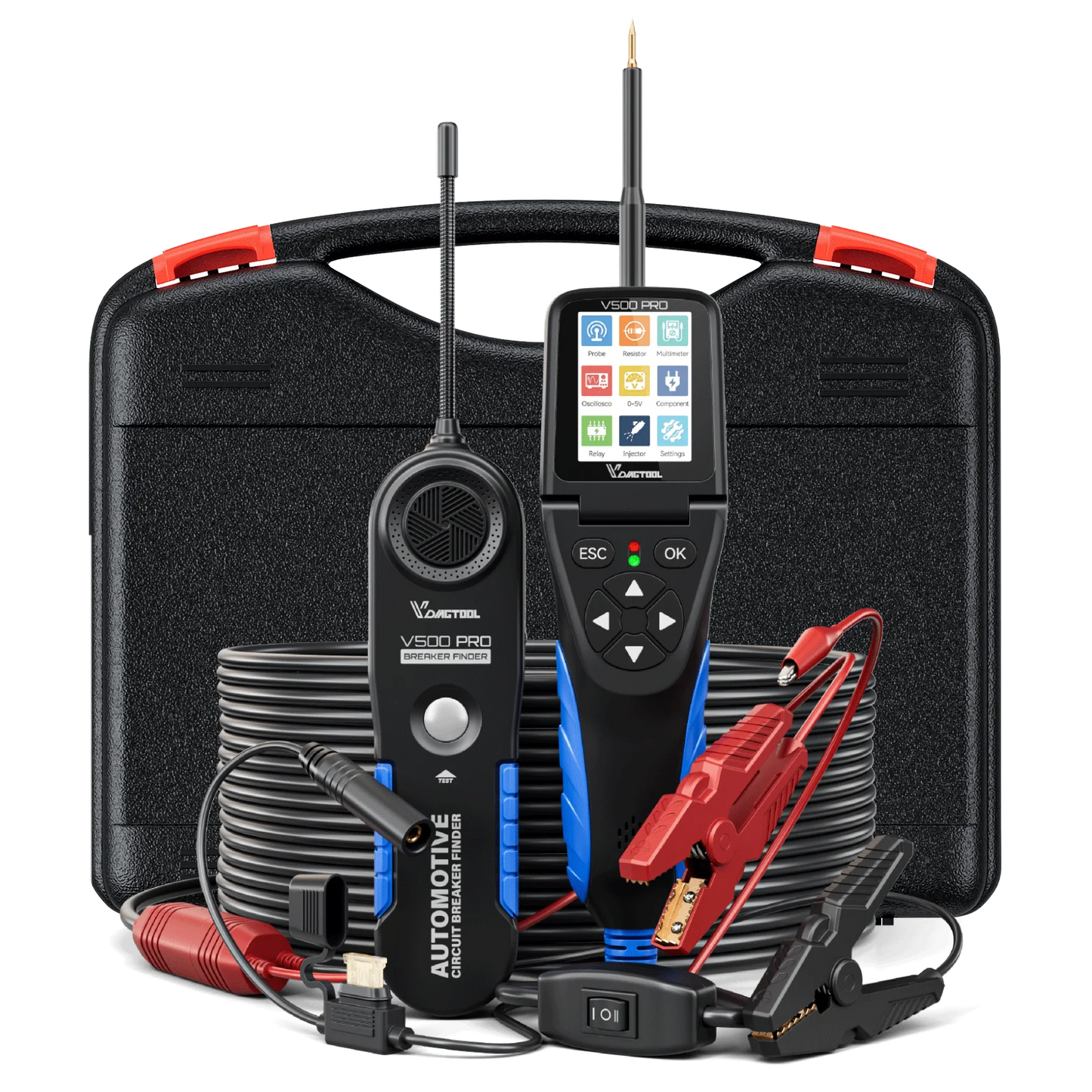

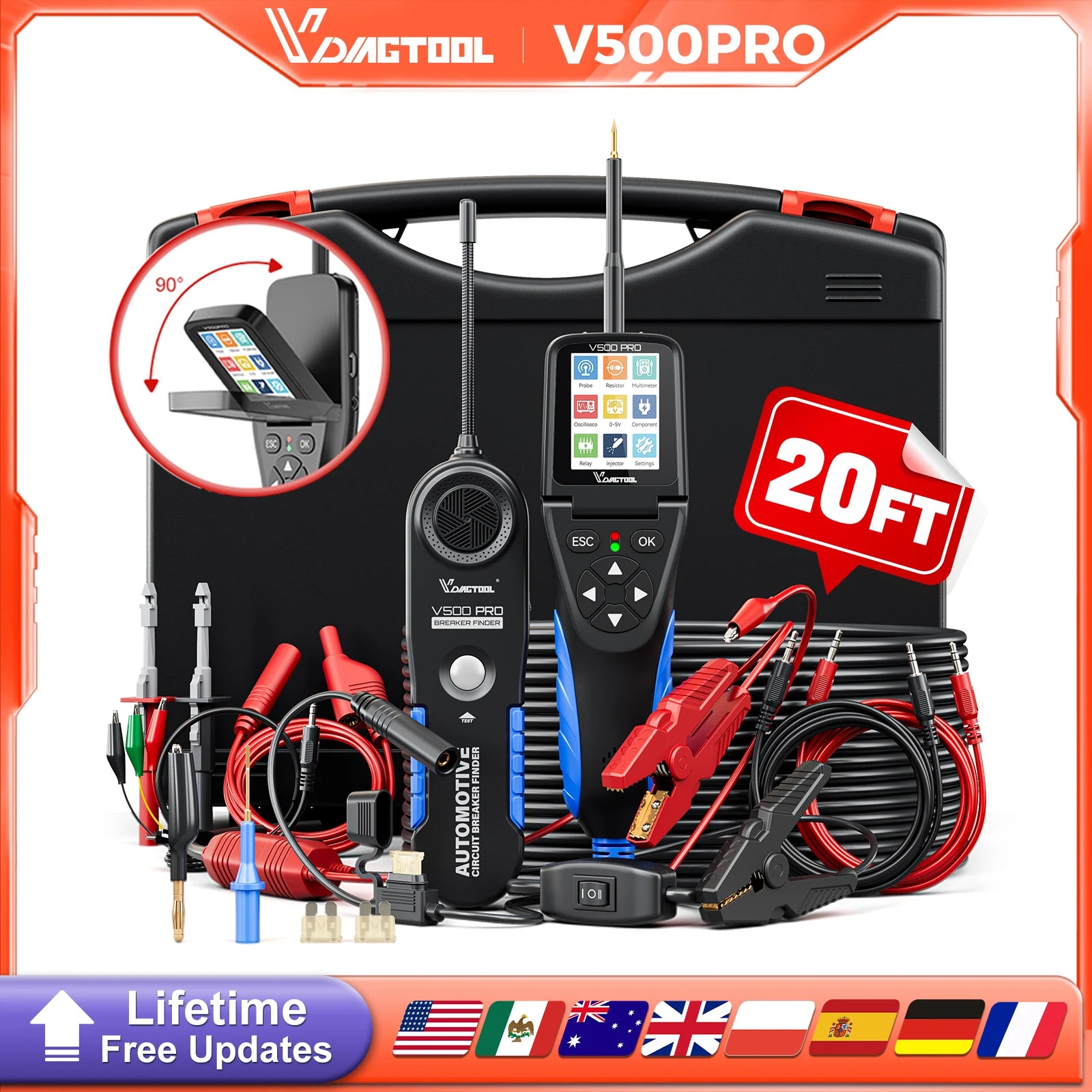

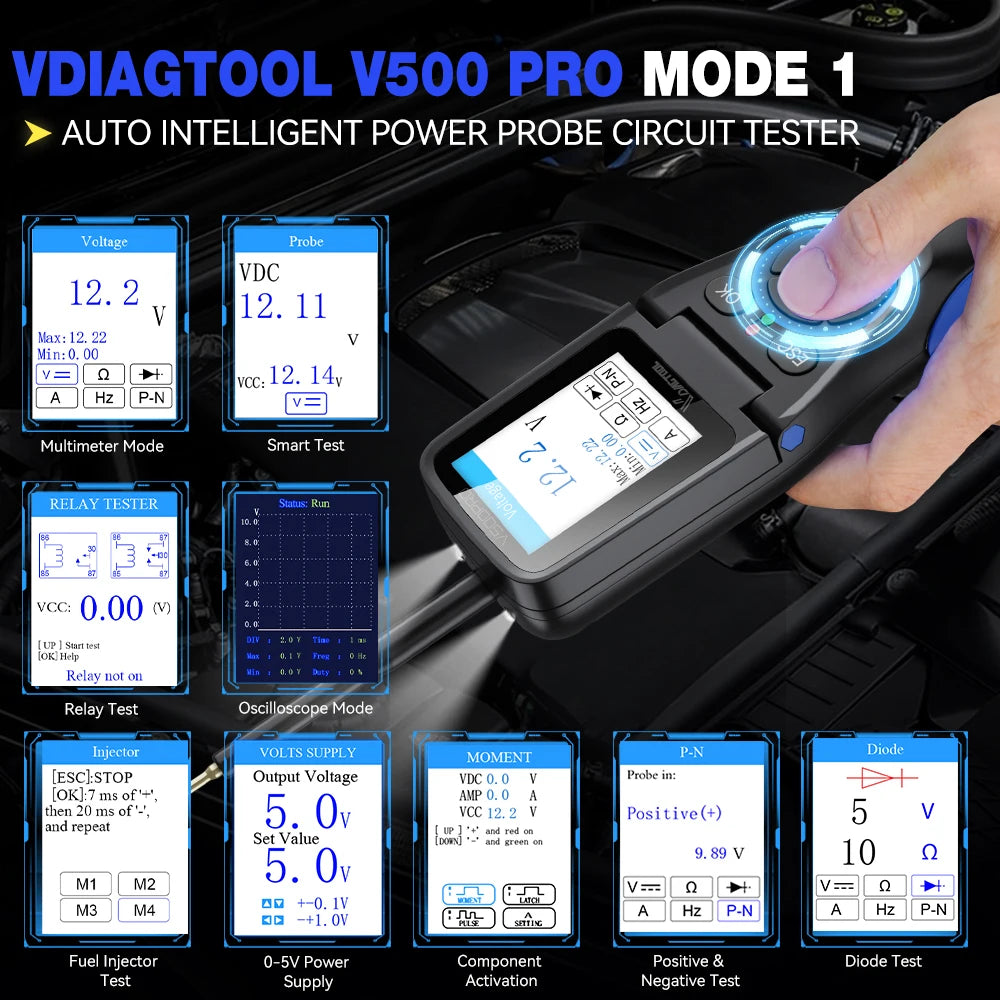

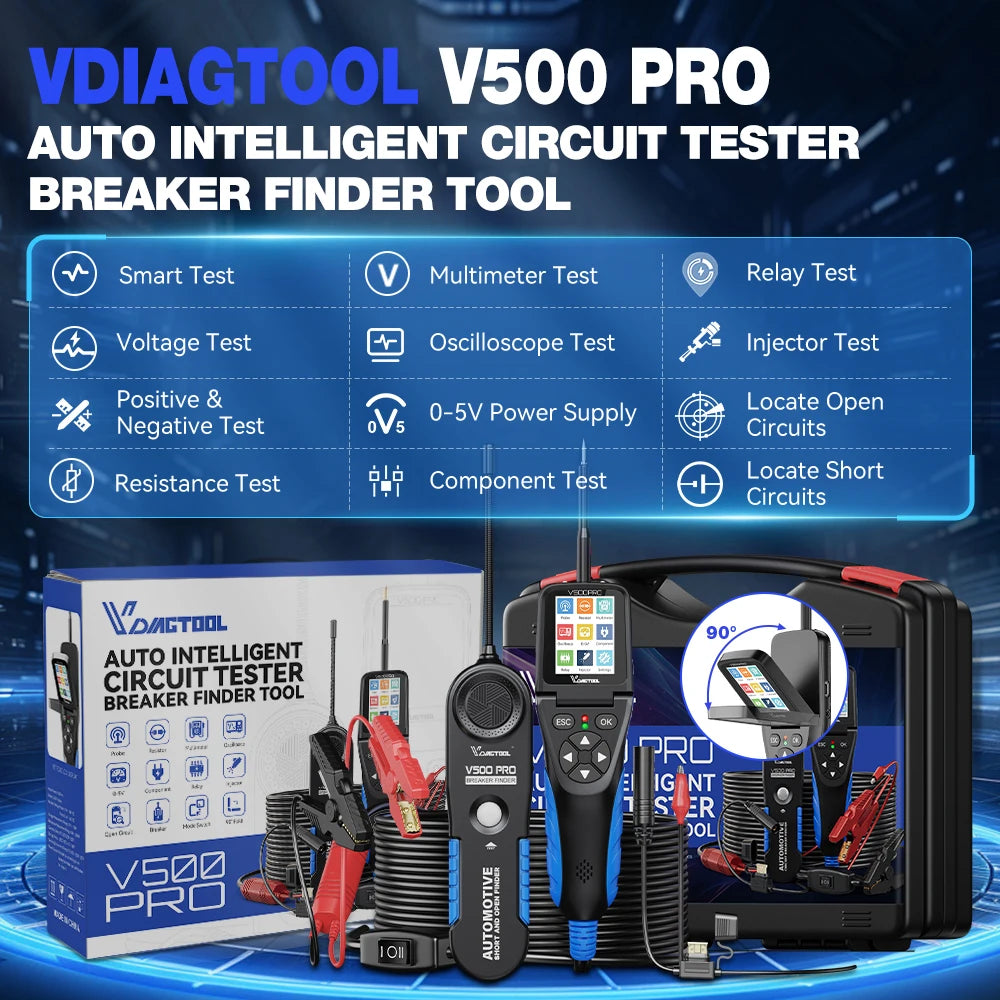

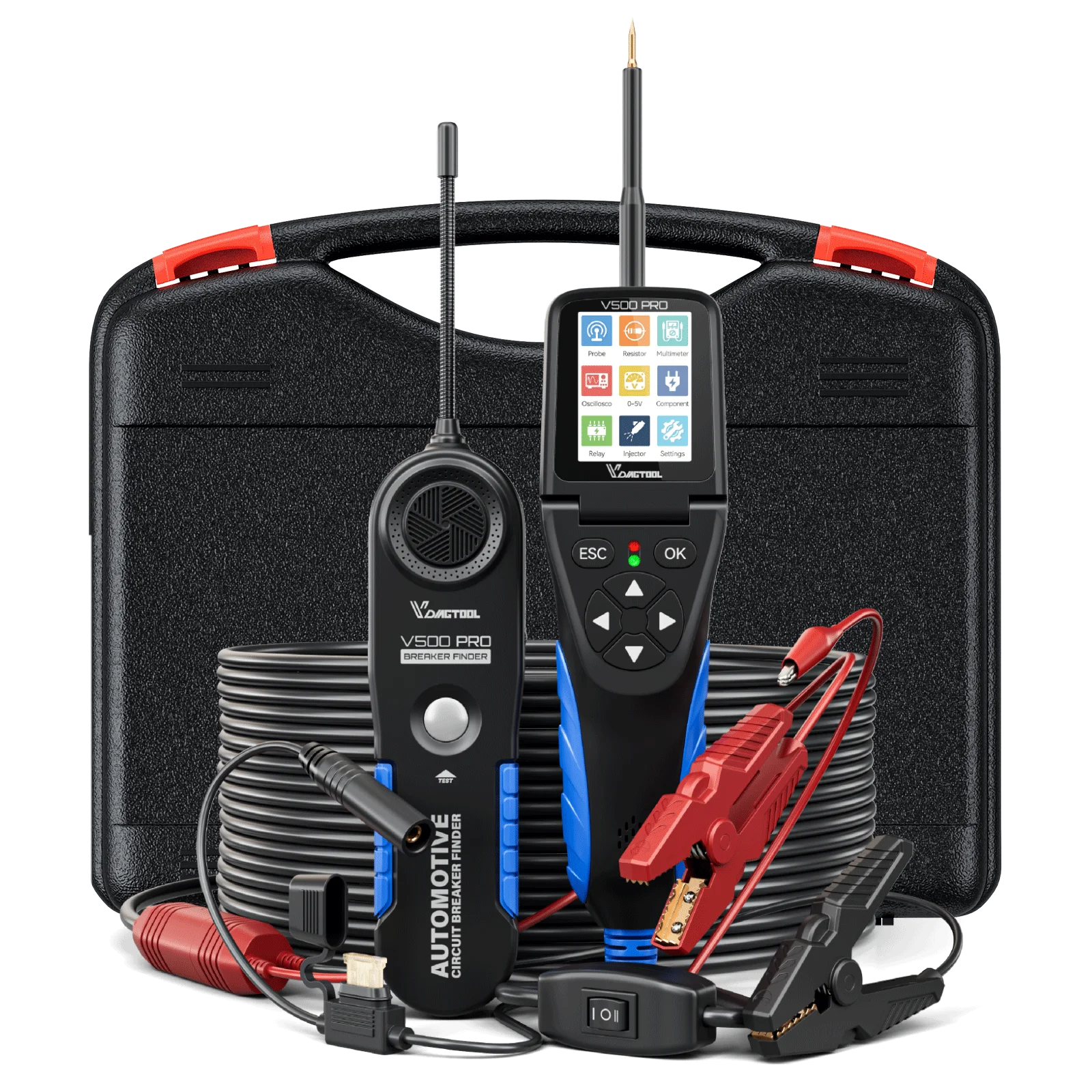

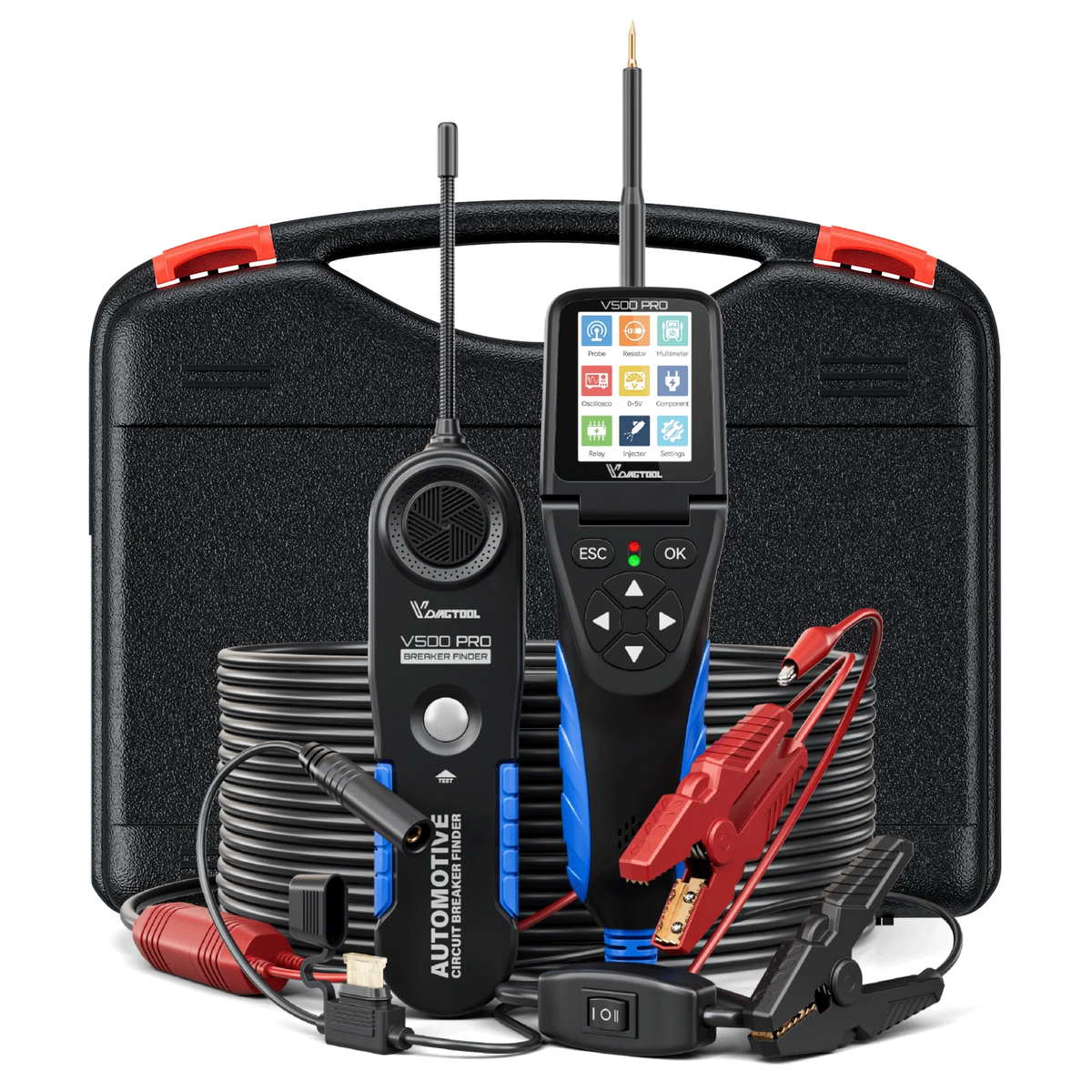

The VDIAGTOOL V500PRO consolidates power probing, digital multimeter readings, and oscilloscope waveform analysis into a single handheld unit engineered for precise automotive circuit troubleshooting. Switching between Mode 1 (V500) and Mode 2 (V210) adjusts the input configuration to match distinct diagnostic workflows, allowing technicians to isolate open circuits, validate reference grounds, and record live wire resistance without unplugging factory connectors.
The device draws operating voltage directly from the vehicle’s 9–30V DC system, ensuring full compatibility across standard 12V passenger platforms and commercial 24V truck architectures. During sensor bench testing or module activation, the integrated 0–5V regulated output supplies stable current to delicate electronic components while you monitor feedback signals. Built-in test sequences automatically verify fuel injector pulse patterns, relay click thresholds, trailer connector continuity, and individual component functionality. Every measurement session starts with a routine hardware self-test that calibrates internal probes and display response before connection.
This tool eliminates the need to carry separate meters or external logic triggers when diagnosing wiring harnesses and control modules. The VDIAGTOOL V500PRO includes lifetime software updates compatible with evolving controller communication protocols, with the current firmware package supporting 2026 vehicle models. Purchases are backed by round-the-clock engineer assistance and a two-year warranty covering manufacturing defects.
