SYSD Video Intercom Doorbell System with Waterproof Camera Doorbell
Check the entrance from the 1.7-inch indoor screen, speak hands-free with visitors, and use the intercom’s unlocking functions. The outdoor camera captures a 700TVL image across a 92-degree viewing angle, with infrared night vision for darker conditions.
Mount the indoor unit on a wall and adjust the screen brightness and colour to suit your room. Choose from 16 polyphonic doorbell tones, then set the sound volume for your household.
- Indoor monitoring: View the camera feed with a monitoring delay of 60 seconds, or use hands-free talkback when someone calls.
- Door access options: The outdoor unit supports power unlocking, power locks, and unlocking with an exit button.
- Camera details: A 3.6 mm lens, 700TVL photosensitive sensor, and five infrared LEDs support viewing at the entrance.
- Outdoor protection: The camera unit has an IP55 waterproof cover and an antioxidant acrylic plate with a wear-resistant ABS shell.
- Indoor design: The indoor unit has an ultra-thin aluminum-panel and ABS design, with a 1.7-inch TFT LCD widescreen display.
- Wired connection: Connect the outdoor unit to the indoor unit using the included 4-core cable; the units use DC 15V/1.2A power.
- Call timing: Call delay is 120 seconds ±10%, giving you time to respond at the indoor unit.
The system supports one-to-one talkback between two indoor units. The indoor unit measures 25 × 15 × 2 cm, and the outdoor unit measures 138 × 98 × 40 mm.
The package includes one indoor unit, one outdoor unit, a connection cable, AC power supply, manual, screw package, 2-core unlock cable, and 4-core cable.
SPECIFICATIONS
Brand Name: SYSD
High-concerned chemical: none
Model Number: 813FA11
Origin: Mainland China
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Feature:
Indoor Unit:
It is have Surveillance,Talkback,Unlocking,Ring music choice
Indoor intercom,Sound volume control, Brightness and Color Adjustment function

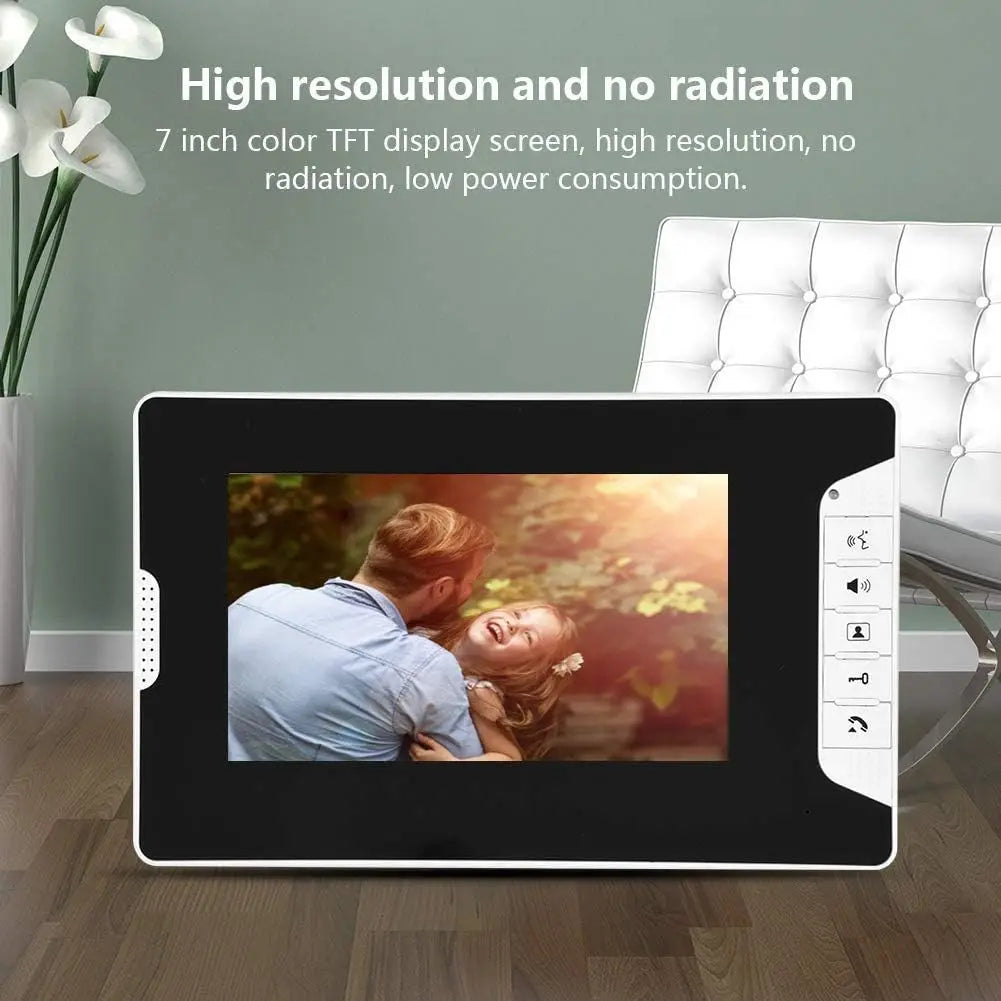

1.7Inch TFT LCD, nonradioactive, low power consumption, High definition widescreen image.
2. Hands-free intercom function
3. Monitoring functions.

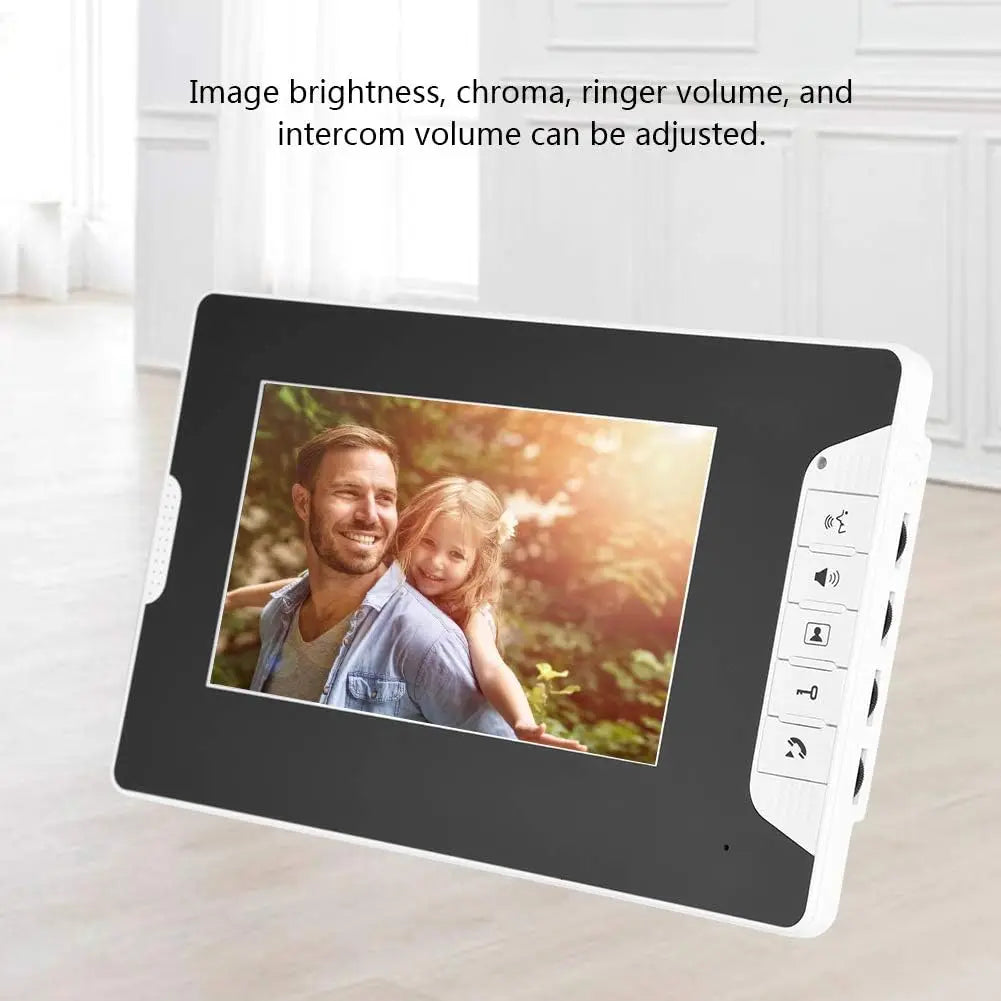

4. Image brightness, Chroma, Ring music choice, Sound volume control can be adjusted.
5.Ultra-thin aluminum panel ABS design.

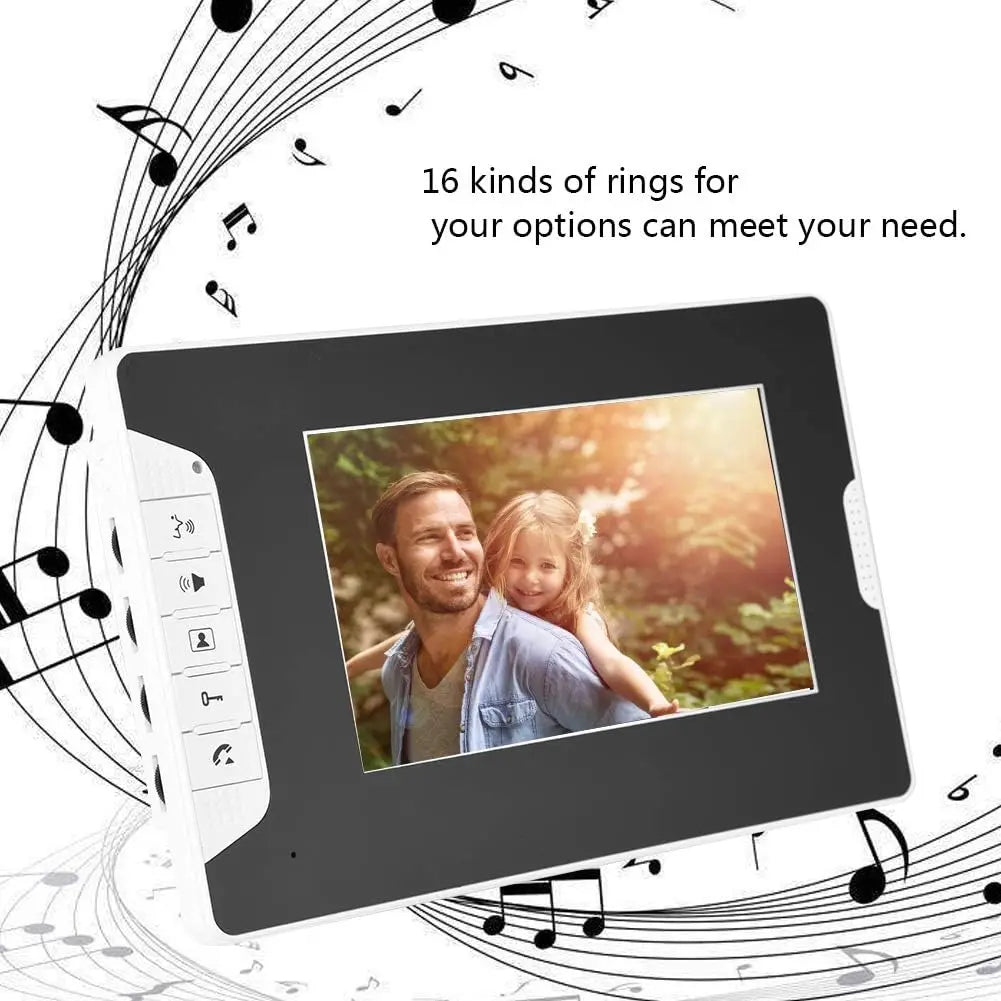

6.16 different polyphonic sound Ring music choice，will not always hear the monotone of Doorbell ring.
7.Hang a wall to install
8.Indoor Size:25*15*2CM
9.Connection mode:（outdoor unit to indoor unit Used to 4 Core cable).
10.power supply mode: DC15V/1.2A
11.two indoor unit can one to one Talkback
Outdoor unit:
1.Antioxidant Acrylic plate and wear-resisting ABS shell.
2.2099 COMS HD photosensitive Chip,700TVL,3.6mm Lens, angle of view 92 degrees.

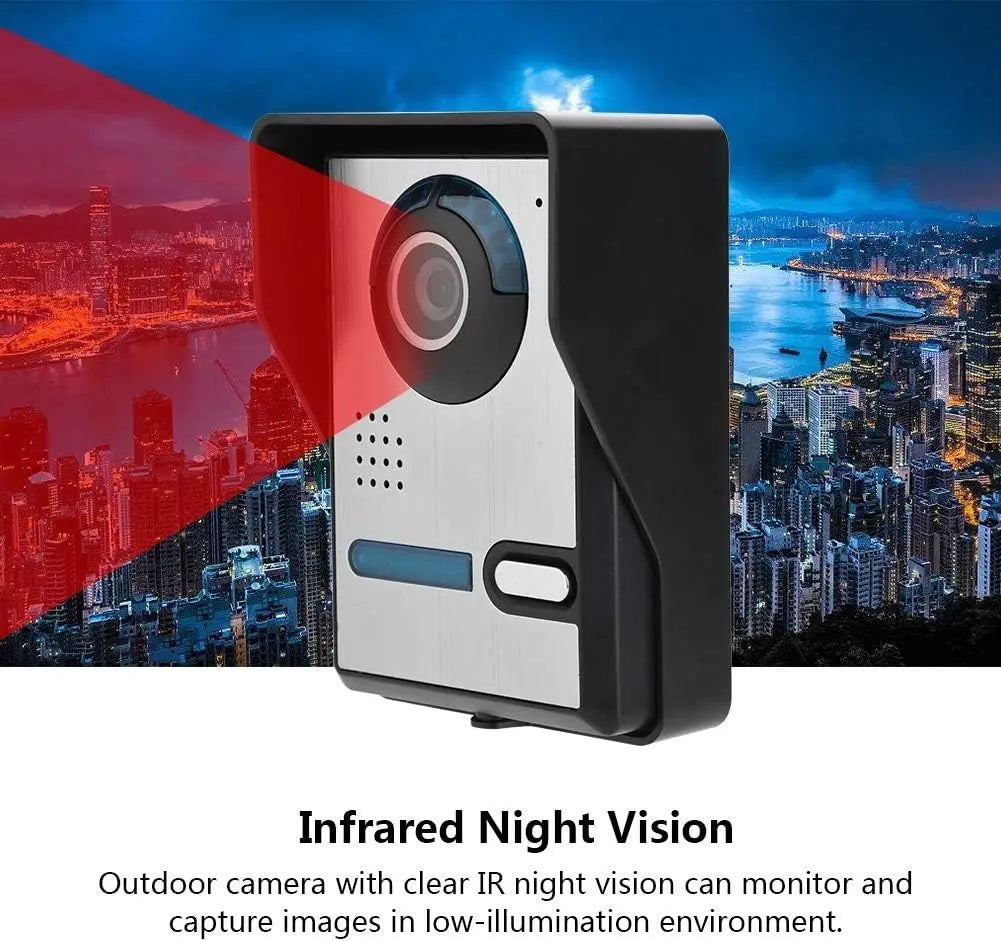

3. Infrared night vision function (5 PCS IR Led + 1 PCS light resistance).

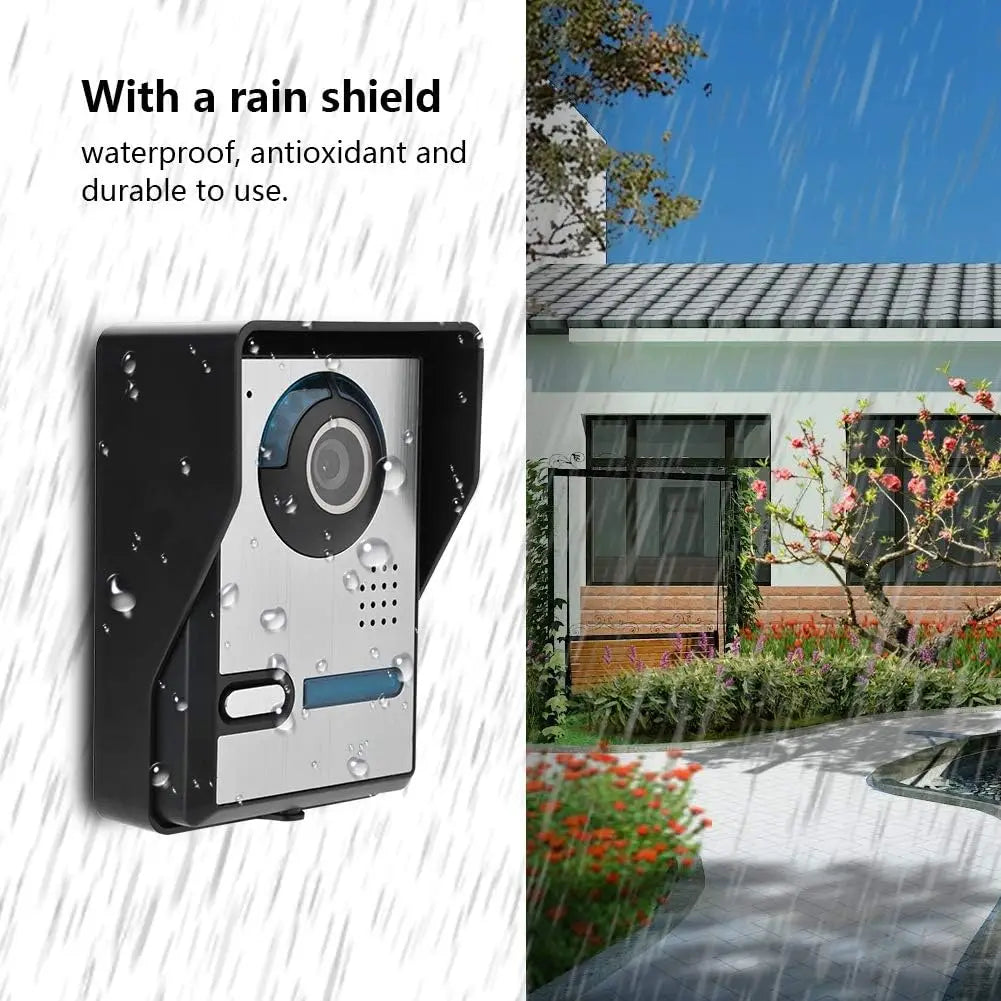

4.IP55 Water proof cover.
5.It is have Power to unlock, Power lock,Exit Button unlock Function
6.Hang a wall to install.
7.outdoor unit size: 138*98*40MM.
8.Connection mode:4 Core cable
9.power supply mode: DC15V/1.2A
Performance parameters: 1.Power supply：AC100-240V/ DC15V 1.2A/50/60HZ
2.Machine current：less than 800mA
3.Call delay time：120S±10%
4.Surveillance delay time：60S±10%
5.camera sensor ：700TVL
6.Lens: 3.6mm Lens, angle of view 92 degrees
Package List:
1.7 inch Color TFT LCD Indoor unit *1
2.Outdoor unit *1
3.Connection cable *1
4.Ac Power supply *1
5.Manual *1
6.Screw package*1
7.2-Core unlock cable*1
8.4-Core Cable*1
